VC-2300

The VC-2300 is an in-vehicle embedded box PC designed to deliver high-performance computing power directly into demanding mobile environments such as mining, heavy fleet operations, and transport logistics. This versatile vehicle box PC features broad processing flexibility, supporting 11th, 12th, or 13th Generation Intel Core i3, i5, and i7 processors to handle resource-intensive data processing on the move. To ensure smooth multitasking and extensive local storage capability, the system can be configured with up to 32GB of DDR4 SO-DIMM system memory alongside a highly versatile hybrid storage subsystem that accommodates an M.2 2280 NVMe SSD, an mSATA slot, and a standard 2.5-inch SATA HDD bay.

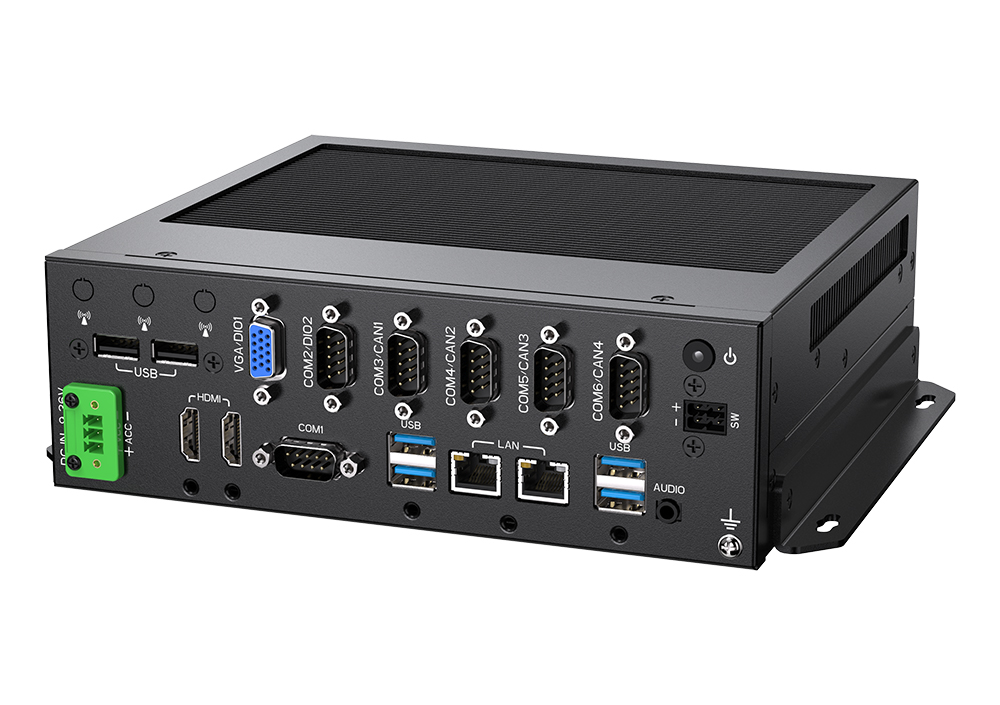

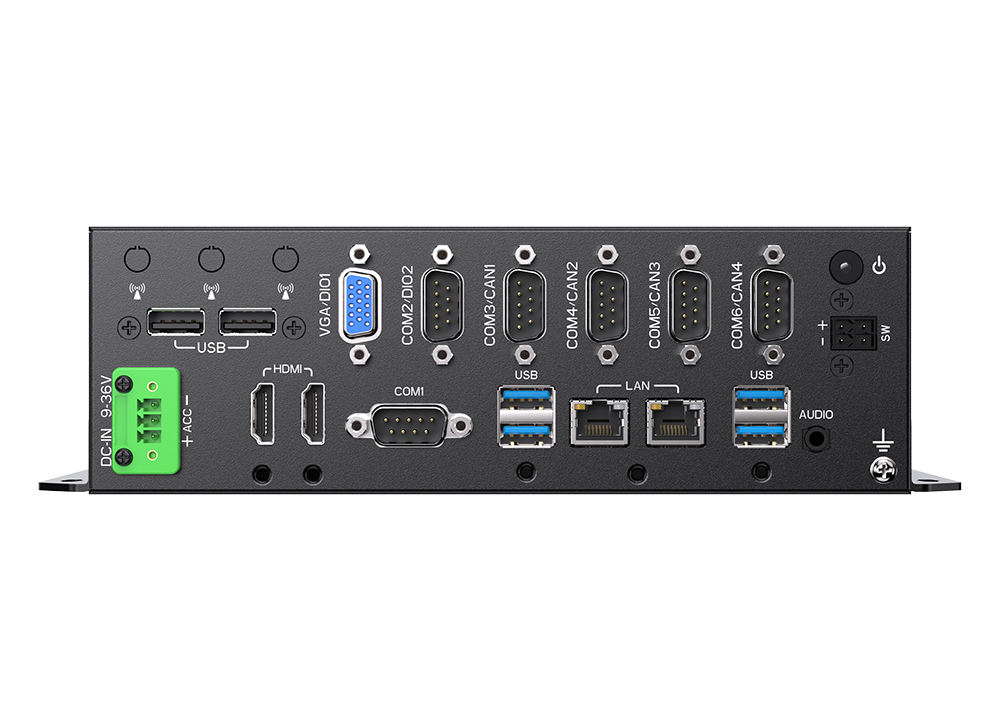

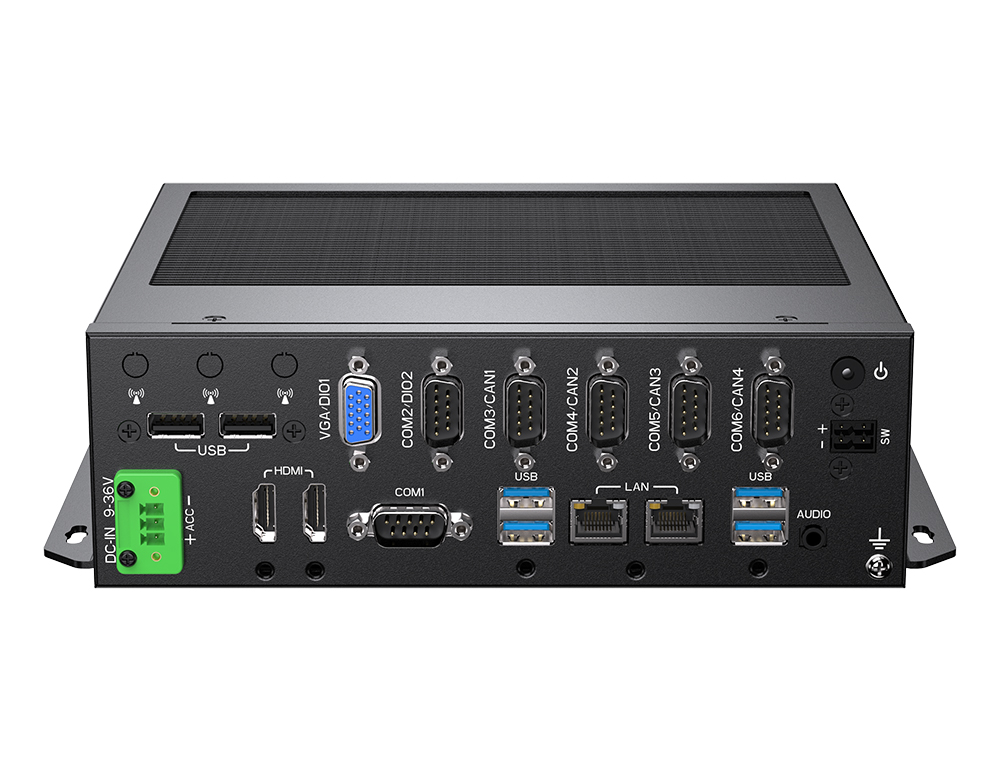

For comprehensive peripheral connectivity and network communications, this vehicle box PC features a rich array of I/O options. Wired networking is handled via two gigabit RJ45 LAN ports, while external hardware integration is supported by four USB 3.0 ports, two USB 2.0 ports, and six serial ports consisting of four dedicated RS-232 and two multi-mode RS-232/485 interfaces. High-definition visual outputs are provided through two HDMI ports and an additional legacy VGA port. Wireless expansion and monitoring are easily integrated via an internal SIM card slot and dedicated expansion slots supporting optional Wi-Fi, Bluetooth, 4G LTE/5G cellular modems, and a precise GNSS navigation module.

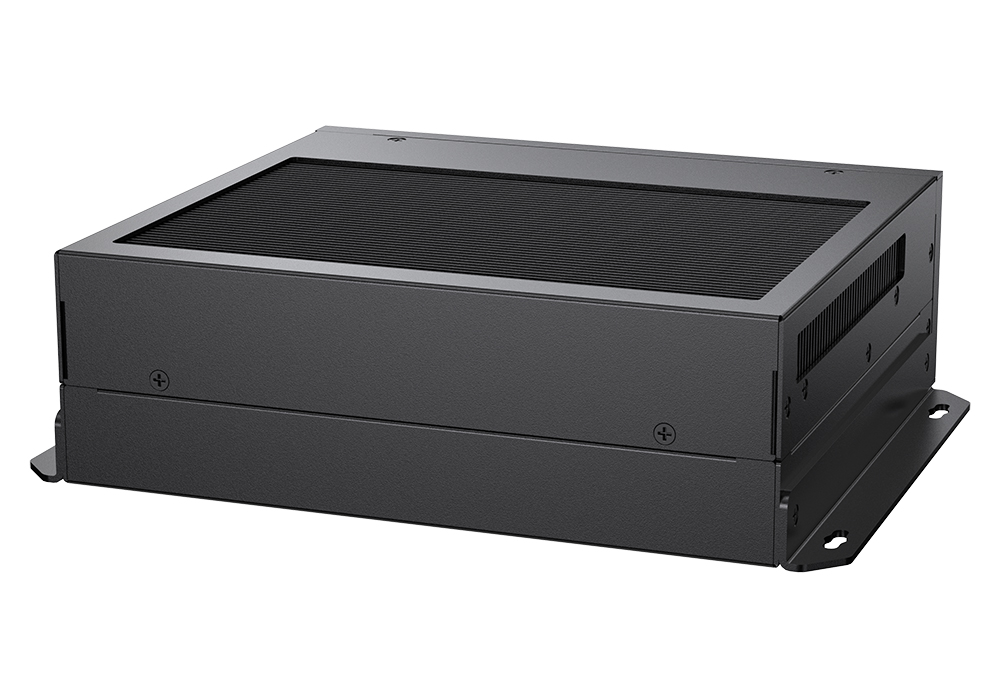

Engineered to endure the mechanical stress of heavy industrial deployment, the VC-2300 is built with a heavy-duty aluminium alloy enclosure utilising an entirely fanless thermal design to eliminate moving parts. It manages harsh environmental conditions with an impressive operating temperature threshold of -20°C~70°C and accommodates a wide-range 9 to 36VDC vehicle power input subsystem. For smart power management and battery protection, the unit features a 4-pin remote switch connection and can be outfitted with an optional ACC ignition on/off power delay control module to protect internal components against vehicle cranking spikes.

With a compact and low-profile physical form factor measuring just 200 x 180 x 65mm and a total net weight of 3kg, this space-saving in-vehicle embedded box PC is ideally suited for tight installations within machine cabins or vehicle boots. The system features a robust wall mount chassis for secure, rigid installation onto vehicle bulkheads or equipment racks. Enterprise software compatibility is well covered, offering native support for standard Windows 10, Windows 11, and Ubuntu Linux operating systems to align perfectly with your existing fleet software infrastructure.

For specialised industrial systems integration, the vehicle box PC offers further customisable functionality with options for four CAN2.0B ports to tap into vehicle telemetry networks and 16 channels of opto-isolated digital input/output (DIO) for direct sensor monitoring. Three SMA-type antenna punch-outs are also provided on the chassis to facilitate clean, external RF signal routing. This ruggedised in-vehicle embedded box PC provides mining operators and logistics managers with an exceptional combination of high-tier Intel Core processing power, extensive connectivity, and mobile-ready industrial durability.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• Multigenerational Intel Core Processing: Supports high-performance 11th, 12th, or 13th Gen Intel Core i3, i5, or i7 processors
• Flexible Memory & Storage Expansion: Supports up to 32GB DDR4 RAM and features a triple-drive system layout accommodating NVMe M.2, mSATA, and 2.5" SATA HDD
• Extensive Serial Connectivity: Equipped with 6x serial ports supporting 4x RS-232 and 2x RS-232/485 protocols
• Industrial I/O & Networking: Features 4x USB 3.0, 2x USB 2.0, and 2x RJ45 GbE LAN ports
• Triple Video Outputs: Includes 2x HDMI ports and 1x VGA port for versatile display configurations
• Advanced Expansion Options: Features internal SIM socket, full/half-length Mini PCIe slots, and optional support for Wi-Fi, Bluetooth, 4G LTE/5G, and GNSS modules
• Rugged Fanless Enclosure: Heavy-duty aluminium alloy chassis with a compact form factor
• Wide Temperature Resilience: Built for extreme environments with an operational threshold of -20°C~70°C
• Vehicle Power Management: Operates via a wide-range 9~36VDC power input with an optional ACC ignition control delay module
• Flexible Vehicle Customisation: Optional integration for 4x CAN2.0B bus lines and 16x opto-isolated DIO channels
• OS Support: Native compatibility with Windows 10, Windows 11, and Ubuntu Linux
• Secure Mounting: Features a rugged wall mount bracket design for secure in-vehicle physical attachment
