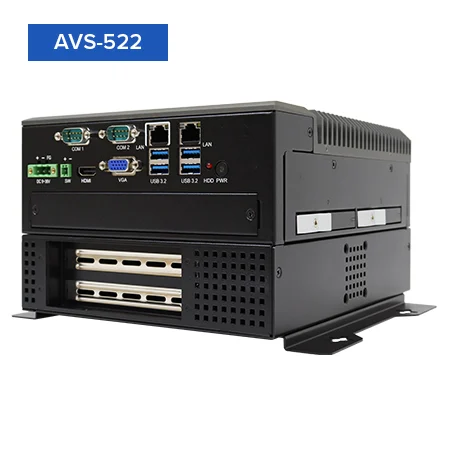

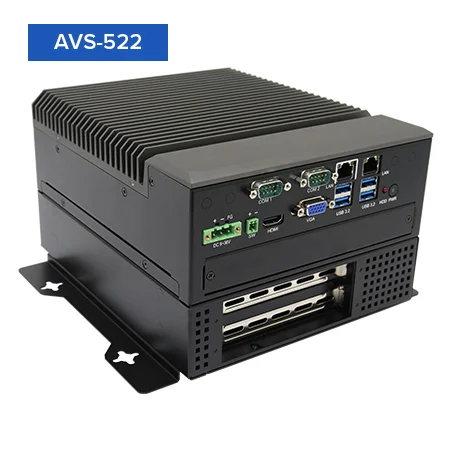

AVS-522-EH1EQ1 Series

The AVS-522 series is purpose built for factory automation and machine vision applications. With one PCI-E(x16) slot to add multi-port graphics card/GPU card and one PCI-E(x4) slot for additional i/o capabilities it has the flexibility to meet various requirements in industrial applications, smart manufacturing, Industrial IoT applications, imaging and quality control. Additionally, the AVS-522 has two LAN ports, four USB 3.2 Gen 1 ports, and two serial ports, allowing it to be connected to a range of cameras and sensors.

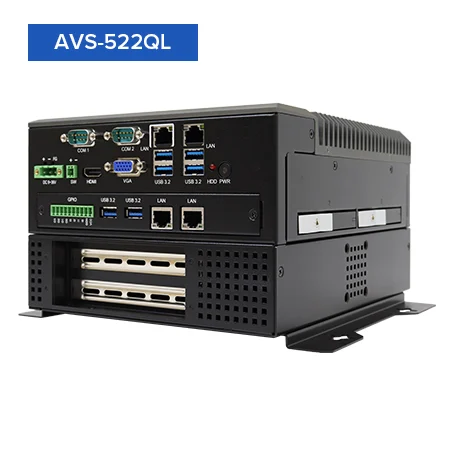

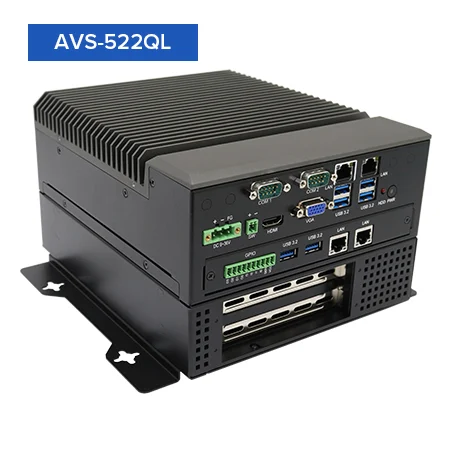

Where additional control is required the AVS-522QL, with its additional two GbE LAN ports, two USB 3.0 ports and its 8-bit DIO, can also control connected systems based on digital inputs. Having a VGA port and HDMI for dual display output, this controller can easily serve as the hub of an effective HMI solution.

The AVS-522 has two removable 2.5” drive bays allowing it to easily transfer large amounts of data storage. It also has one full size Mini-PCIe slot and one 2242/2280 M.2 slot B/M keyed that supports NVMe.

The AVS-522 is a rugged, fanless system that features a tough casing and an operational temperature range of -20°C to 60°C for the i3/i5 processors or -20°C to 50°C for the i7 processor. It can withstand power surges and drops, and has a DC input range of 9V to 36V. The system is also resistant to high levels of shock (15G) and vibrations (1G).

Key Features:

• 9th Gen. Intel Core i3/i5/i7 Processor
• 1 x PCI-E(x16) and 1 x PCI-E(x4) slot
• Support up to 64GB So-DIMM DDR4
• 2 x Removable Drive-bays
• Flexible expansion features through I/O module design
• 2 x Serial ports (1 x RS-232/422/485 and 1 x RS-232)
• 1 x VGA and 1 x HDMI graphics ports
• 2 x GbE LAN ports
• 4 x USB3.2 ports
• Wide Range DC 9~36V Power Input
• 1 x Mini-PCI-e slot and 1 x M.2 supporting NVMe
