Fanless Embedded Compact PC Intel Gen 12 Core i3/i5/i7
Taking embedded computing to the next level, the BOXER-6646 is an exceptionally versatile, compact, and sophisticated all-purpose solution. Powered by 12th Generation Intel® Core™ processors with dual-channel DDR5 support, and equipped with industry-leading features such as a DIO port, multiple 2.5GbE LAN, and four display ports, the BOXER-6646 is capable of handling high workloads within a more compact form factor. Hosting a wide power input range alongside wide-voltage input power protection features, the BOXER-6646 is a compact, sophisticated, and versatile industrial automation solution.
12th Generation Intel® Core™ Strength with Intel Xe Graphics
Equipped with the latest 12th Generation Intel Core series processors, the BOXER-6646 benefits from a hybrid CPU architecture of up to 12 cores and 16 threads, Intel® Iris® Xe Graphics, and DDR5 support while retaining power-efficiency. With a 28W CPU alongside Intel® Gaussian & Neural Accelerator technology, the BOXER-6646 is able to handle high-speed industry workloads while maintaining low power consumption.

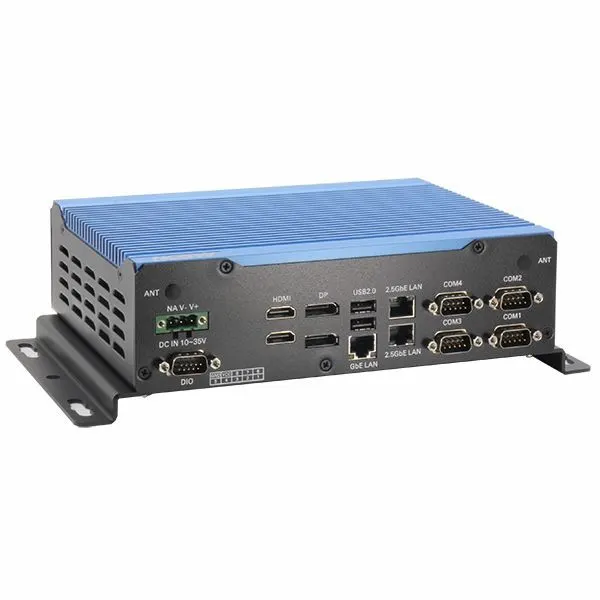

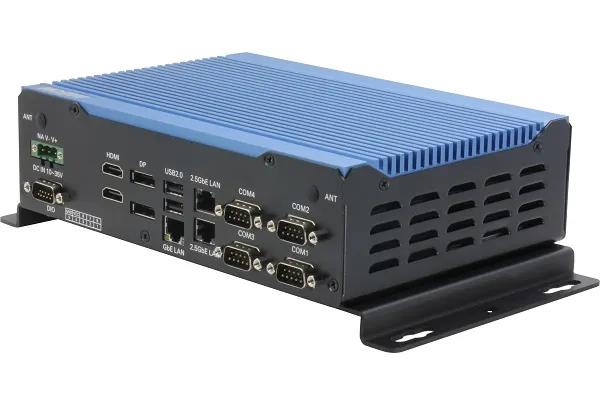

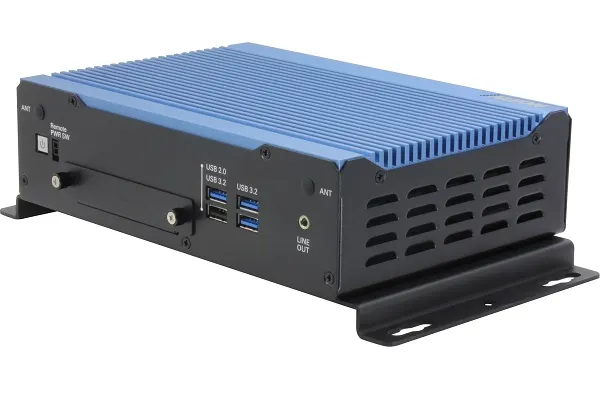

Equipped with multiple 2.5GbE LAN ports, three 10Gbps USB 3.2 Gen 2 slots, and a quadruple display interface featuring both HDMI 1.4 and DP 1.4, the BOXER-6646 efficiently utilizes its compact 220 mm x 154 mm x 61.6 mm form factor. With such a wealth of high-speed connectors in a compact device, the BOXER-6646 has potential as an extremely durable Autonomous Mobile Robot (AMR) solution.
Enhanced, Accessible Expandability

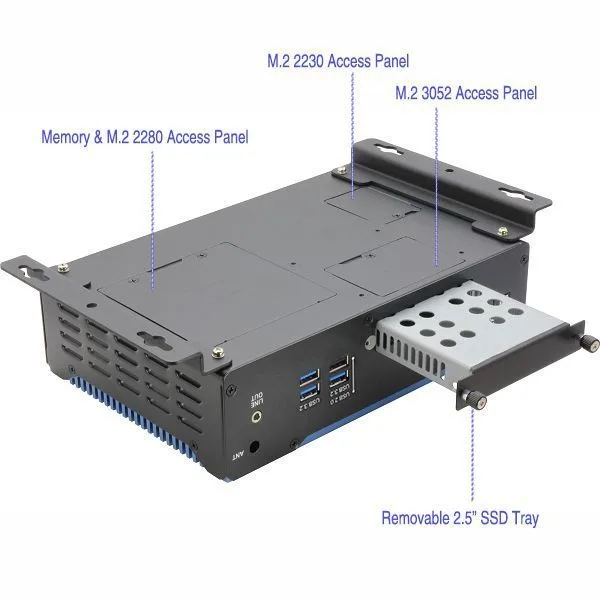

The BOXER-6646 is designed to make its expansion options accessible. The chassis contains a removable 2.5” SATA drive bay for additional storage on top of the 64GB system memory offered through the device’s DDR5 support. Further, there is a bottom-side service window for easy expansion key access, making it easier to integrate 5G, Wi-Fi, and NVMe modules via the BOXER-6646’s M.2 3052, M.2 2230, and M.2 2280 ports.
Power Protection for Diversified Deployment
Possessing a wide range DC input of 10~35V and an operating temperature of -20°C ~ 60°C, the BOXER-6646 is a candidate for near-universal deployment. To protect user data from being damaged by power source variation, the BOXER-6646 is equipped with reverse power protection, over/under-voltage and current protection, alongside surge and short-circuit protection. The BOXER-6646 is versatile enough to power applications as diverse as industrial AMR, AI-IoT Gateway, industrial automation, and in-vehicle public safety solutions.
