BOXER-6645-ADS

Product Overview

Industrial Embedded Box PC with Intel Gen 12/13 Core i3/i5/i7/i9 Processor, 4 x Display Inputs, Win 10/11/Linux

Features Include:

  • 12th/13th Gen. Intel Core i3/i5/i7/i9 Processors
  • Dual Channel DDR5 SoDIMM memory up to 64GB
  • 3 x GbE and 1 x 2.5Gbe LAN ports
  • Support 8x USB3.2 Gen 10Gbps (A2) or 4 x 5Gbps (A1) ports
  • View More

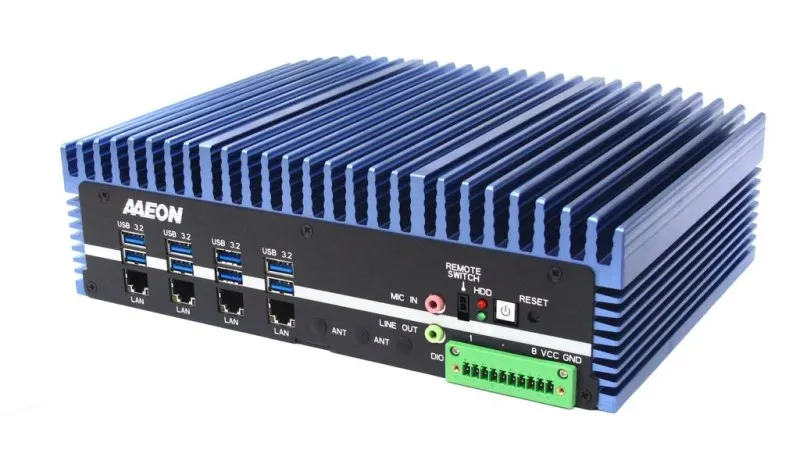

Embedded Box PCs BOXER-6645-ADS Main Product Image
Embedded Box PCs BOXER-6645-ADS Product Image 2

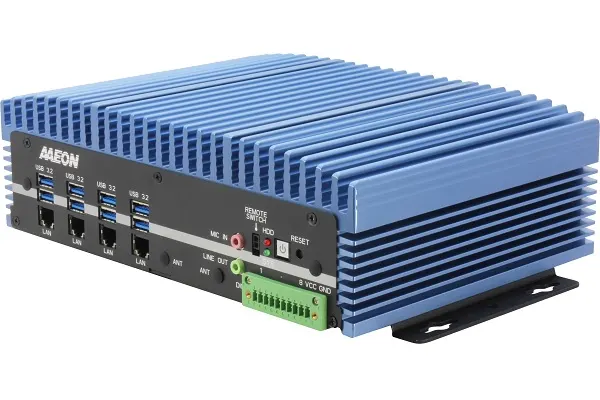

Embedded Box PCs BOXER-6645-ADS Product Image 3

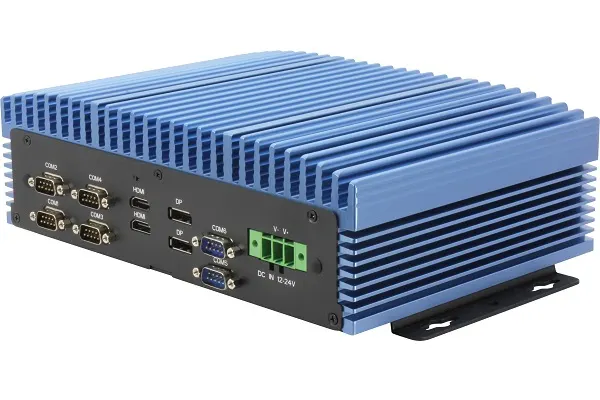

Embedded Box PCs BOXER-6645-ADS Product Image 4

Interworld Electronics is excited to offer the BOXER-6645-ADS rugged fanless Embedded Box PC from AAEON. The BOXER-6645-ADS contains exceptional processing capabilities of up to 16 cores and 24 threads with 12th/13th Generation Intel® Core™ i3/i5/i7/i9 Processor platforms, providing limitless potential for applications that demand high-performance computing, alongside a rich I/O featuring four independent display interfaces and multiple LAN ports within a rugged, fanless chassis.

The BOXER-6645-ADS is built to withstand harsh environments, including extreme temperatures (-20°C ~ 60°C), shock, vibration, and humidity. The system is housed in a durable aluminium fanless chassis that protects it from dust and other environmental factors. Along with its wide 12~24V power input range, the BOXER-6645-ADS is ideal for continuous operation in the most extreme deployment environments.

The BOXER-6645-ADS is one of the most well-equipped Embedded Box PCs available, with up to eight 10Gbps USB 3.2 Gen 2 slots for high-speed peripherals, four LAN ports for camera and sensor connectivity, and four independent display outputs, making the BOXER-6645-ADS conducive to applications such as traffic management control rooms. Additionally, it is equipped with the latest M.2 expansion capability, housing M.2 2230 and M.2 2252 slots to facilitate both Wi-Fi and 5G modules. This abundance of I/O support makes the BOXER-6645-ADS stand out from the competition, and makes it an ideal option for industry 4.0 applications.

The BOXER-6645-ADS also comes with a tapestry of integrated peripheral technologies, including Intel® DL Boost, Time Coordinated Computing, Enhanced SpeedStep® Technology and Intel® Iris® Xe Graphics to enable elite AI inferencing performance. The BOXER-6645-ADS also supports both Windows 10/11 & Linux Ubuntu, making it even more adaptable and future-proof for a wide range of industrial applications.

Complementing its power and ruggedness, the BOXER-6645-ADS also offers incredible speed via a dual-channel SODIMM slot supporting DDR5 4800MHz, providing a 50% increase in bandwidth and data rate transfer speed. This low-latency transmittance capability alongside display interfaces, such as HDMI 1.4b and DP1.4a ports, make the BOXER-6645-ADS an excellent candidate for deployment as an edge-server for IoT Gateway use.

Key Features:

  • 12th/13th Gen. Intel Core i3/i5/i7/i9 Processors
  • Dual Channel DDR5 SoDIMM memory up to 64GB
  • 3 x GbE and 1 x 2.5Gbe LAN ports
  • Support 8x USB3.2 Gen 10Gbps (A2) or 4 x 5Gbps (A1) ports
  • Quadruple Independet Display 2 x HDMI, 2 x DP
  • Built-in high-performance Intel® UHD Graphic Engine
  • Win 10/11 & Linux Ubuntu Support
  • M.2 3052 B-Key for 5G Module
  • Hailo-8™ M.2 2280 AI Accelerator Module Support (Optional)

Data Sheets (PDF)

Product Downloads PDF Icon

BOXER-6645-ADS Data Sheet

Part Numbers

Details

Boxer-6645-ADS-A1

Boxer-6645 Fanless Embedded PC, H610E Gen 12/13 Intel Core, 6xser, 3xGbe &1x2.5Gbe LAN, 4xUSB3.2 (5Gbps), 4xUSB2, 2xssd & 1xM.2 2280, 2xM.2 expansion slots, 12-24VDC

Boxer-6645-ADS-A2

Boxer-6645 Fanless Embedded PC, Q670E Gen 12/13 Intel Core, 6xser, 3xGbe &1x2.5Gbe LAN, 8xUSB3.2 (10Gbps), 2xssd & 1xM.2 2280, 2xM.2 expansion slots, 12-24VDC
