BOXER-6643-TGU

Product Overview

Fanless Embedded Box PC with 11th Generation Intel® Core™ SoC Processor

Features Include:

  • Extreme Computing Power with Intel® SoC Processor
  • DDR4 slot x2, up to 64GB
  • Support High Speed NVMe storage (M.2 2280)
  • GbE LAN x 1 (Intel I219) + 2.5GbE LAN x 1 (Intel I225)
  • View More
Embedded Box PCs BOXER-6643-TGU Main Product Image
Embedded Box PCs BOXER-6643-TGU Product Image 2

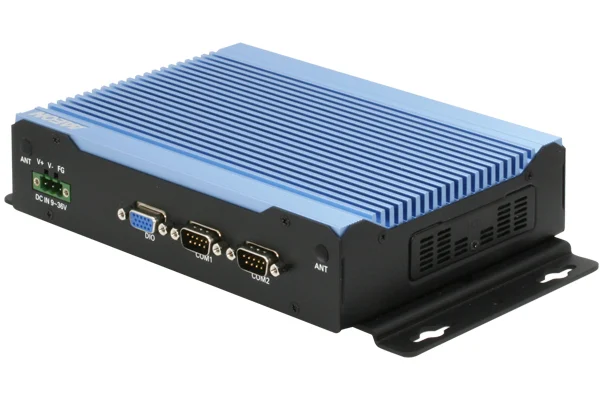

Embedded Box PCs BOXER-6643-TGU Product Image 3

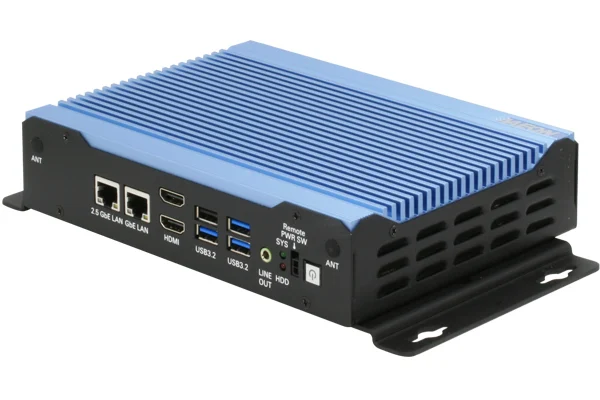

Embedded Box PCs BOXER-6643-TGU Product Image 4

The BOXER-6643-TGU brings the power of 11th Generation Intel® Core™ U processors to a compact, rugged platform that delivers greater performance and capabilities over previous generations. The system supports up to 64GB of memory to unlock the full potential of the system’s processing capabilities. Along with the Intel® Iris® Xe embedded graphics, users can leverage the GPU to power AI and Edge Computing industrial applications, or high definition graphics in digital signage and kiosk applications.

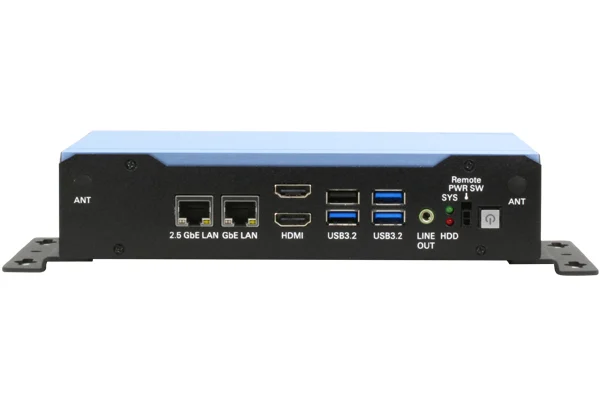

The BOXER-6643-TGU features two LAN ports, one 2.5 Gbps and one 1.0 Gbps, ensuring quick communication for real-time processing and control. The system also features expansion slots supporting wireless networks, including Wi-Fi, 4G and 5G cellular communication. Other I/O features include three USB3.2 Gen 2 slots, one USB2.0 slot, dual COM ports and 8-channel DIO.

The BOXER-6643-TGU supports storage options including mSATA and NVMe, and features a SATA III port connected directly to the board, eliminating cables that may come loose in high-vibration environments. The 2.5” SATA drive is easy to install and maintain, with a slide out tray located on the side of the system. Additionally, two easy-access panels on the bottom of the system allows users to quickly add on or upgrade expansion cards and memory modules.

Built to deploy anywhere, the BOXER-6643-TGU is designed with a compact form factor and rugged construction. Fan-less design keeps dust and contaminants out, while also delivering an operating temperature range of -20°C to 60°C. With a cable-free design, the system is suitable for high-vibration environments.

Key Features:

  • Extreme Computing Power with Intel® SoC Processor
  • DDR4 slot x2, up to 64GB
  • Support High Speed NVMe storage (M.2 2280)
  • GbE LAN x 1 (Intel I219) + 2.5GbE LAN x 1 (Intel I225)
  • Supports M.2 3052 B Key for 5G module
  • Wide Range 9-36V DC input
  • Wide Range -20~60 °C Operating Temperature

Data Sheets (PDF)

Product Downloads PDF Icon

BOXER-6643-TGU Data Sheet

White Papers (PDF)

Product Downloads PDF Icon

The Brains Behind Container Crane Brawn

Shipping serves as the backbone of the modern, consumer-driven economy, and an estimated 90% ofeverything we buy has spent time at sea inside a shipping container....

White Papers

Part Numbers

Details

BOXER-6643-TGU-A1

BOXER-6643 Fanless embedded PC Gen 11 i3-1115G4E, 2xser, 4xUSB3.0, 1x GbE, 1x2.5GbE, 2xHDMI, 2xmini-Card, SATA, audio, 9-36VDC input

BOXER-6643-TGU-A2

BOXER-6643 Fanless embedded PC Gen 11 i5-1145G7E, 2xser, 4xUSB3.0, 1x GbE, 1x2.5GbE, 2xHDMI, 2xmini-Card, SATA, audio, 9-36VDC input

BOXER-6643-TGU-A3

BOXER-6643 Fanless embedded PC Gen 11 i7-1185G7E, 2xser, 4xUSB3.0, 1x GbE, 1x2.5GbE, 2xHDMI, 2xmini-Card, SATA, audio, 9-36VDC input
