Fanless Embedded Box PC with Socket Type 10th Generation Intel® Core Processor
The BOXER-6642-CML is the first fanless industrial PC from AAEON to offer the 10th Generation Intel Core i3/i5/i7/i9 and Intel® Celeron® processors (up to 35W TDP). Utilizing a socket-type desktop chipset, the system can be easily scaled or upgraded to match the performance needs of any application. Additionally, its slim design, only 54mm thick, allows it to fit into almost any tight space, allowing it to be deployed right where it needs to be.
The BOXER-6642-CML features an M.2 2280 (M-Key) slot driven by PCIe 3.0 [x4] with support for fast NVMe SSDs. It also has an M.2 2230 (E-Key) slot to support Wi-Fi or Bluetooth connectivity. The BOXER-6642-CML is built with a full-sized Mini Card slot which supports PCIe and mSATA, set via the BIOS.
The BOXER-6642-CML features fanless design which keeps dust and other contaminants out, allowing reliable, long-lasting operation. It also features a wide voltage input (10 to 35V) and provides consistent operation without loss of performance in temperatures from 0°C up to 45°C.

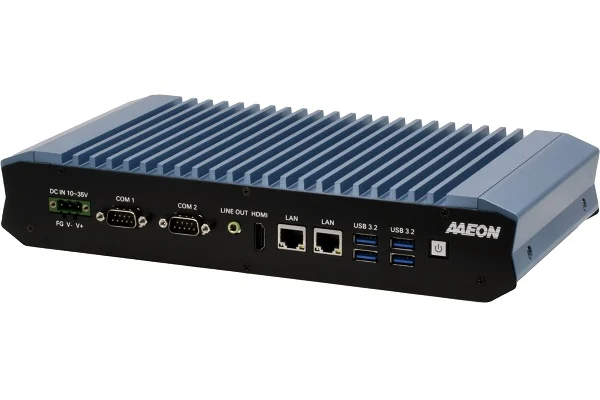

The BOXER-6642-CML offers a broad range of I/O features including four serial COM ports, four USB3.2 Gen 2 ports, and two Gigabit Ethernet ports, providing support for Intel® vPro and Intel® AMT. The BOXER-6642-CML also delivers storage flexibility with NVMe support, mSATA, and 2.5” SATA III (6.0 Gbps) storage devices. The BOXER-6642-CML can also easily connect with cellular networks thanks to onboard SIM card slot, allowing for even more communication flexibility.
