ACS-2310A

Product Overview

Ultra-Slim Industrial Fanless Box PC, Intel Celeron J6412 Processor, DIN Rail Mount

Features Include:

  • Intel Elkhart Lake Processor Celeron J6412
  • 1 x 260-pin SO-DIMM up to 32GB DDR4
  • 1 x 2.5GbE and 1 x GbE lan port
  • Wide Range Operation Temperature -20~70˚C
  • View More
Embedded Box PCs ACS-2310A Main Product Image
Embedded Box PCs ACS-2310A Product Image 2

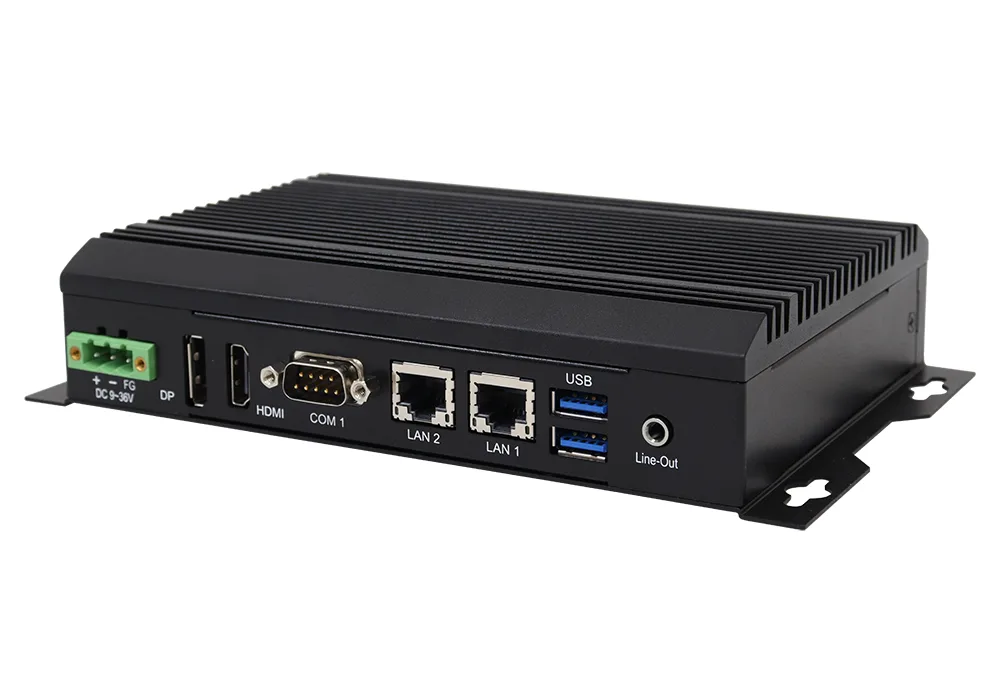

Embedded Box PCs ACS-2310A Product Image 3

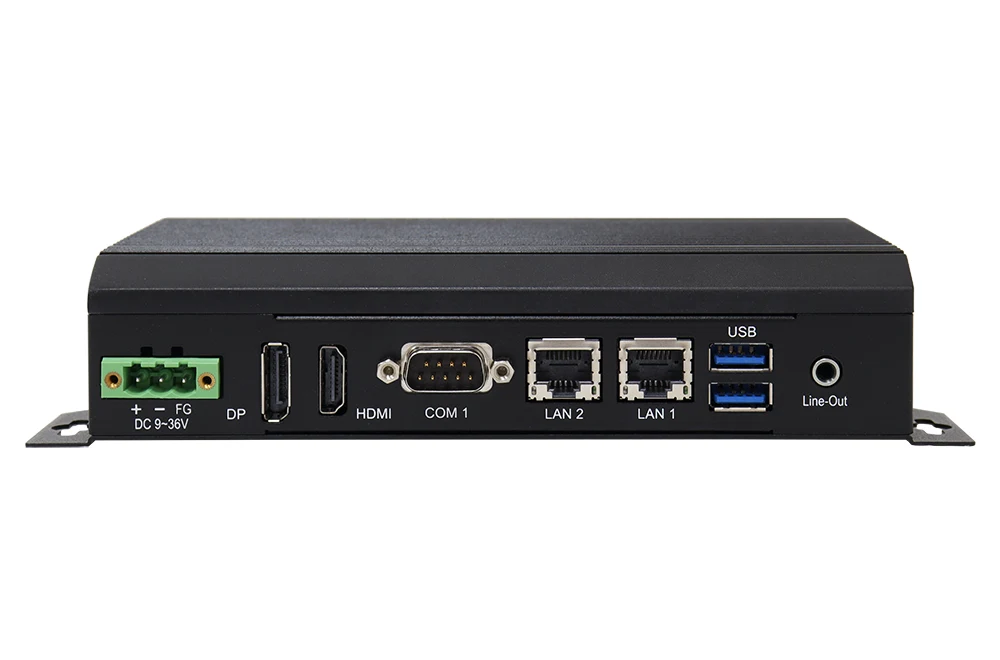

Embedded Box PCs ACS-2310A Product Image 4

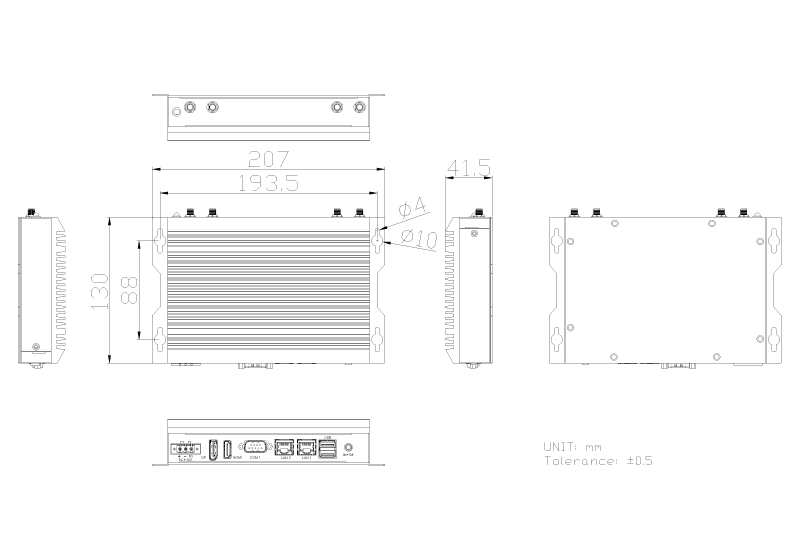

Embedded Box PCs ACS-2310A Product Image 5

With its compact size, rugged/fanless design, wide operating temperature, various mounting options, and wide range of additional features, the ACS-2310A is suitable for a wide variety of industrial applications, including manufacturing, process control, warehousing and mining.

The ACS-2310A is powered by the Intel Celeron J6412 processor and supports up to 32GB SoDIMM DDR4 memory.  It has 2 x USB 3.2 ports; 1 x RS-232/422/485 serial port, 1 x DP and 1 x HDMI graphics output port; and 1 x 2.5GbE LAN and 1 x GbE LAN ports. It also supports 1 x MO-297 SATA Half Slim SSD and 1 x M.2 M-Key 2280 for SSD, which can be used simultaneously, providing even more storage options. It’s wide range of I/O and storage options enables users to integrate the ACS-2310A with a number of peripheral devices and applications making it suitable for a variety of solutions.

The ACS-2310A is also a rugged, durable and reliable fanless system that features a tough casing (aluminium heatsink and steel chassis) and an operational temperature range of up to -20°C to 70°C, enabling it to continuously run even in harsh industrial environments. It supports a wide range DC 9~36V input and is extremely compact (207 x 130 x 41.5mm), making it a good option for applications with limited space.

It supports both Windows 10 & 11 providing increased flexibility for future applications. It also has a range of mounting options, including bench/wall, VESA, and DIN mounts, making the device adaptable to a range of environments. The combination of performance, ruggedness and flexibility in such a compact device makes the ACS-2310A an ideal solution for your needs.

Key Features:

  • Intel Elkhart Lake Processor Celeron J6412
  • 1 x 260-pin SO-DIMM up to 32GB DDR4
  • 1 x 2.5GbE and 1 x GbE lan port
  • Wide Range Operation Temperature -20~70˚C
  • 1 x HDMI and 1 x DP graphics ports
  • 2 x USB 3.2 and 1 serial port
  • 2 x M.2 expansion ports
  • Wide Range DC 9~36V Input

Data Sheets (PDF)

Product Downloads PDF Icon

ACS-2310A Data Sheet

Part Numbers

Details

ACS-2310A

Fanless box PC, Celeron J6412 2GHz, 1xser, 2xUSB3.2, 1x2.5Gbe + 1xGbe lan, HDMI, DP, audio, MO-297 half slim SATA & M.2 ssd slot, 2xM.2 slots, 9-36VDC input with adapter
