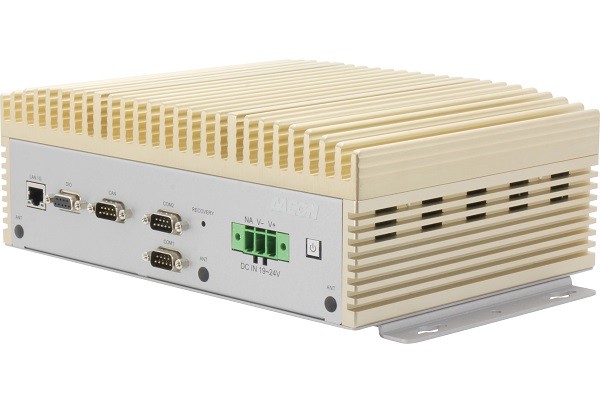

BOXER-8646AI

The BOXER-8646AI is a rugged, fanless embedded Edge AI system built for high-performance computing at the edge. Powered by the NVIDIA® Jetson AGX Orin™ and offering up to 200 TOPS of AI inferencing, it is ideal for smart surveillance, traffic management, and industrial automation.

Designed for connectivity-heavy deployments, the system features 12 PoE/PSE GbE LAN ports—enabling direct power and data delivery to multiple IP cameras or AI sensors. It also includes 1 x 10G LAN and 1 x GbE LAN for high-speed upstream data transfer. For additional peripherals, it offers 2 x USB 3.2 Gen 1, 2 x USB 2.0, and multiple DB-9 ports for RS-232/422/485, CANBus FD, and digital I/O.

The BOXER-8646AI supports extensive expansion with M.2 E, B, and M keys for Wi-Fi, LTE, and NVMe storage, along with a SIM slot for cellular connectivity. It features 32GB LPDDR5 memory and 64GB eMMC and M.2 NVMe storage support for fast, reliable data handling.

With a wide operating temperature range of -20°C to 50°C, anti-vibration (3.5Grms), and 50G shock resistance, this system is ready for deployment in challenging environments where durability and longevity are required.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• Powered by NVIDIA® Jetson AGX Orin™ (up to 200 TOPS AI performance)
• 32GB LPDDR5 system memory
• 12 x PoE/PSE GbE LAN ports for IP camera and device connectivity
• 1 x 10G LAN and 1 x GbE LAN for high-speed networking
• 2 x USB 3.2 Gen 1 Type-A and 2 x USB 2.0 Type-A
• 1 x HDMI 2.0 (Type A)
• 1 x DB-9 for 2 x CANBus FD
• 2 x DB-9 for RS-232/422/485 serial communication
• 1 x DB-9 for 8 x Digital I/O
• 6 x Antenna holes for wireless communication modules
• Expansion Options: M.2 slots: E-Key for Wi-Fi/Bluetooth, B-Key for LTE (with SIM slot), M-Key for NVMe SSD
• Wide 19V–24V DC power input range
• Operating temperature: -20°C ~ 50°C
• Anti-vibration: 3.5Grms (5~500Hz)
• Anti-shock: 50G peak acceleration
