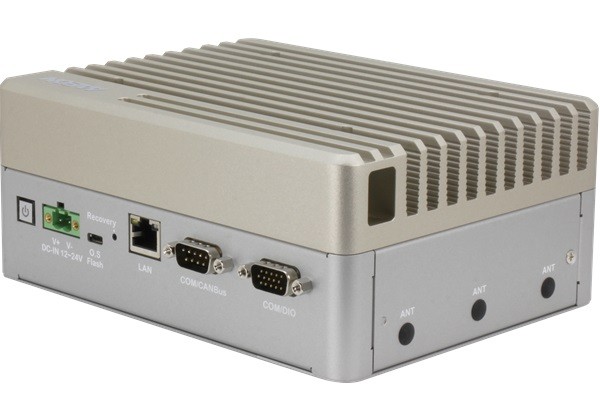

BOXER-8623AI
Product Overview
Compact AI Box PC with Jetson Orin Nano, 4 x PoE LAN, 4 x USB3.2, RS-232/485, CANBus & 8 x DIO
Features Include:
- Powered by NVIDIA® Jetson Orin Nano™ with 6-core Arm® Cortex®-A78AE CPU
- 4GB or 8GB LPDDR5 system memory
- 1 x M.2 2280 M-Key
- 1 x HDMI 1.4 (Type-A)
- View More
The BOXER-8623AI is a compact, fanless embedded AI box PC powered by the NVIDIA® Jetson Orin Nano™ and built for efficient AI inference at the edge. Designed for industrial and smart city applications, this rugged system combines advanced AI processing with a rich I/O array and robust environmental resilience.
With a 6-core Arm® Cortex®-A78AE 64-bit CPU and up to 8GB of LPDDR5 memory, the BOXER-8623AI delivers responsive performance for edge AI workloads. It supports one M.2 2280 M-Key slot for high-speed NVMe storage, ideal for local inferencing models and application data.

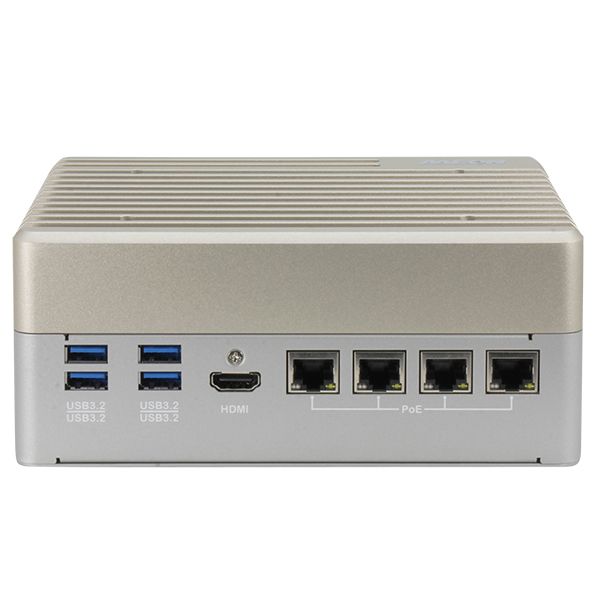

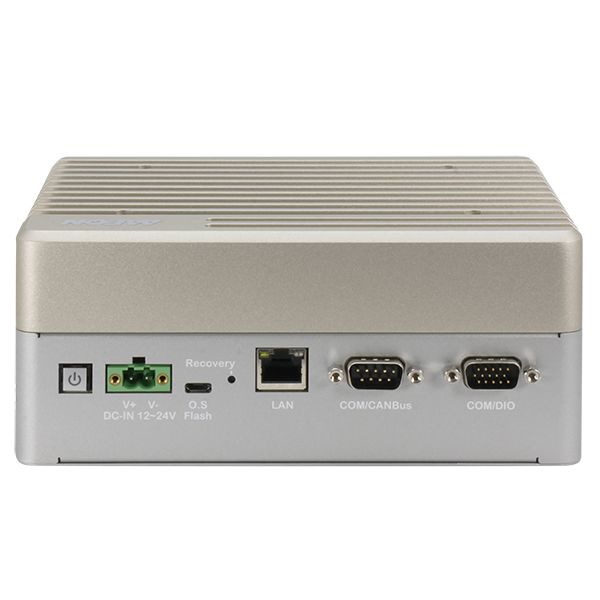

The BOXER-8623AI offers a comprehensive and well-balanced selection of I/O interfaces to support a wide range of edge devices. The system features four RJ-45 GbE PoE/PSE ports (802.3af/at, max 60W) for directly powering and connecting devices like IP cameras—minimizing installation complexity and cost. It also includes one standard GbE LAN, four USB 3.2 Gen 2 Type-A ports, HDMI 1.4 video output, a DB-9 for RS-232 & CANBus FD, and a DB-15 offering RS-232/422/485 and 8-bit digital I/O. A micro-USB port is also available for OS flashing.
Expansion is supported via M.2 B-Key (4G/5G), E-Key (Wi-Fi/Bluetooth), and a SIM slot for wireless communication, enabling flexible deployment in a range of environments. The system withstands harsh conditions with a -15°C to 65°C temperature operating range, 12V~24V DC power input range and anti-vibration/shock resistance.
Ideal for smart surveillance, traffic management, or factory automation, the BOXER-8623AI delivers reliable AI capability where it's needed most.
Take a look at the data sheet or request a quote to learn more.
Key Features:
- Powered by NVIDIA® Jetson Orin Nano™ with 6-core Arm® Cortex®-A78AE CPU
- 4GB or 8GB LPDDR5 system memory
- 1 x M.2 2280 M-Key
- 1 x HDMI 1.4 (Type-A)
- 1 x RJ-45 for GbE LAN
- 4 x RJ-45 for PoE GbE LAN (802.3af/at, max 60W total)
- 4 x USB 3.2 Gen 2 (Type-A) ports
- 1 x DB-9 for 1 x RS-232 and 1 x CANBus FD
- 1 x DB-15 for 1 x RS-232/422/485 and 8 x DIO
- 1 x Micro USB for OS flash
- 6 x antenna holes for wireless connectivity
- Expansion: 1 x M.2 2280 M-Key (NVMe), 1 x M.2 3042/3052 B-Key (4G/5G), 1 x M.2 2230 E-Key (Wi-Fi/Bluetooth), 1 x SIM slot
- Wide operating temperature: -15°C to 65°C
- 12V ~ 24V DC power input range
- Compact fanless design: 180mm x 136mm x 75mm
- Shock resistance: 50G peak / Vibration: 3.5Grms (5~500Hz)
