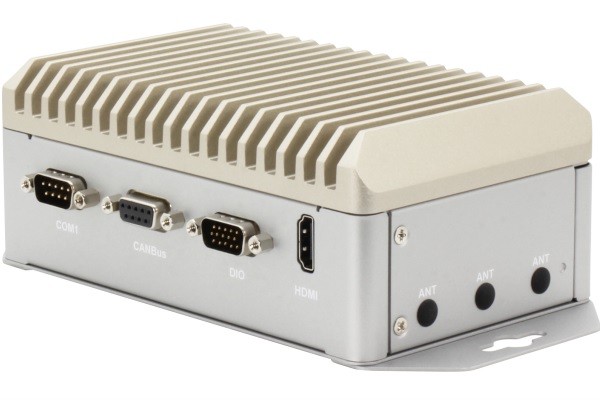

BOXER-8622AI

The BOXER-8622AI is a compact, fanless embedded AI system powered by the NVIDIA® Jetson Orin Nano™ module with Super Mode support. Designed for space-constrained industrial environments, it delivers impressive AI performance, enhanced connectivity, and flexibility in deployment.

Built for intelligent edge applications, the BOXER-8622AI features a 6-core Arm® Cortex®-A78AE CPU paired with 4GB or 8GB of LPDDR5 memory, enabling efficient processing of AI workloads in real time. Storage is handled via a high-speed M.2 2280 M-Key slot, supporting SSDs for rapid data access and reliability in rugged conditions.

For connectivity, the system is equipped with dual Gigabit Ethernet (2 x RJ-45), four USB ports (2 x USB 3.2 Gen 2 and 2 x USB 2.0), and a Micro USB for OS flashing. Industrial control and integration are supported via CANBus (DB-9), RS-232/422/485 (DB-9), HDMI 1.4 and a 13-bit DIO interface (DB-15). Expansion capabilities include M.2 E-Key (Wi-Fi/Bluetooth) and M.2 B-Key (4G/5G), while six antenna holes provide wireless deployment flexibility.

With 12–24V DC power input range, anti-vibration protection (3.5Grms), and wide (-15°C to 65°C) operating temperature tolerance, the BOXER-8622AI is ideal for edge AI solutions such as traffic management, smart surveillance, AMR/AGV control, and manufacturing automation.

Take a look at the data sheet or request a quote to learn more.

Key Features:

• NVIDIA® Jetson Orin Nano™ AI accelerator with Super Mode support
• 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
• 4GB / 8GB LPDDR5 memory
• 1 x M.2 2280 M-Key slot for high-speed SSD storage
• 1 x HDMI 1.4 (Type-A)
• 2 x RJ-45 for Gigabit Ethernet (10/100/1000 Base-T)
• 2 x USB 3.2 Gen 2 (Type-A) + 2 x USB 2.0 (Type-A)
• 1 x Micro USB for OS flashing
• 1 x DB-9 for CANBus
• 1 x DB-9 for RS-232/422/485
• 1 x DB-15 for 13-bit digital I/O
• 6 x antenna holes for Wi-Fi/4G/5G/GNSS modules
• 1 x M.2 2230 E-Key (Wi-Fi/Bluetooth), 1 x M.2 3042/3052 B-Key (4G/5G)
• 12V–24V DC power input range
• Wide operating temperature: -15°C ~ 65°C (with 0.5 m/s airflow)
• Anti-vibration: 3.5Grms / 5~500Hz
• Anti-shock: 50G peak acceleration
