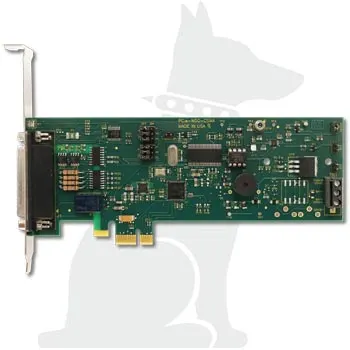

PCIE-WDG-CSM
Product Overview
PCI Express Watchdog Timer Status Monitor
Features Include:
- Standard Features: Low Profile PCI Express watchdog timer and computer status monitor card
- Ambient light sensor
- External LM335 temperature sensor
- 2 Isolated FETs switch from 5 to 34VDC
- View More
Key Features:
- Standard Features: Low Profile PCI Express watchdog timer and computer status monitor card
- Ambient light sensor
- External LM335 temperature sensor
- 2 Isolated FETs switch from 5 to 34VDC
- Low Profile mounting bracket
- Open collector transistor output to ground power good line or reset switch via pass through upon timeout
- DPDT relay contacts notify external devices when reset signal occurs
- 2 LVTTL outs & 2 LVTTL inputs (5V tolerant)
- DB25 female connector on mounting bracket
- RGB LED at mounting bracket provides at-a-glance status information
- Onboard speaker
- EEPROM for configuration and firmware
- Advanced Model Features: Analog to Digital Converter with integrated temperature and humidity sensors and multiplexed inputs
- +12V and +3.3V PCIe Power Monitor
- 4 Isolated digital inputs accept up to 31VDC
- FACTORY OPTIONS: Industrial operating temperature (-40°C to +85°C)
