PCIe-DIO-24JP Series

Product Overview

24 Channel PCIe Digital I/O Cards with CoS IRQ and 68-pin SCSI connector

Features Include:

  • User interrupt pin
  • Four and eight bit ports independently selectable for inputs or outputs
  • 5V or 3.3V VCCIO configurable by jumper selection
  • Easy upgrade from PCI-DIO-24JPLS Family devices
  • View More

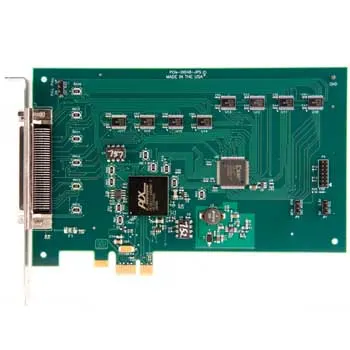

Data Acquisition & Control PCIe-DIO-24JP Series Main Product Image
Data Acquisition & Control PCIe-DIO-24JP Series Product Image 2

Key Features:

  • User interrupt pin
  • Four and eight bit ports independently selectable for inputs or outputs
  • 5V or 3.3V VCCIO configurable by jumper selection
  • Easy upgrade from PCI-DIO-24JPLS Family devices
  • Poly-fused VCCIO available to the user on each I/O header
  • 24 channel high-current TTL digital I/O lines
  • Change of State (COS) detection and interrupt capabilities
  • Compatible with industry standard 8255 PPI
  • 68-pin SCSI pin-in-socket female connector on card mounting bracket
  • All 24 digital I/O lines buffered with 32mA source / 64mA sink
  • Jumper configurable pull-ups/-downs on DIO lines

Data Sheets (PDF)

Product Downloads PDF Icon

PCIe-DIO-48JP Series Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

Software Reference Manual

Acces I/O programming utility software reference manual...

Internet Links

Part Numbers

Details

PCIe-DIO-24JPS

24 Channel Digital I/O Card w/ Change of State (COS) and Screw Locks

PCIe-DIO-24JPLS

24 Channel Digital I/O Card w/ Change of State (COS) and Latching Connector
