PCIe-DIO-24H Series

Product Overview

PCI Express Digital I/O Cards with Change-of-State (COS) Detection, IDC50 I/O Connector

Features Include:

  • 24 high-current DIO lines
  • IRQ generation from Port C bit 3, and Counter A2 ("C" models) and/or Change-of-State (COS) Detection ("S" models)
  • DIO lines buffered
  • Four and eight bit ports independently selectable for inputs or outputs
  • View More

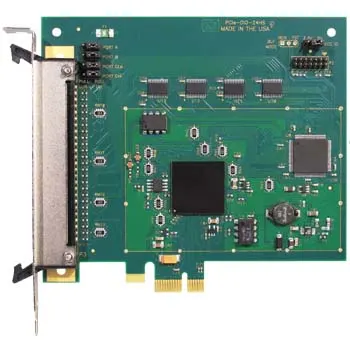

Data Acquisition & Control PCIe-DIO-24H Series Main Product Image
Data Acquisition & Control PCIe-DIO-24H Series Product Image 2

Key Features:

  • 24 high-current DIO lines
  • IRQ generation from Port C bit 3, and Counter A2 ("C" models) and/or Change-of-State (COS) Detection ("S" models)
  • DIO lines buffered
  • Four and eight bit ports independently selectable for inputs or outputs
  • User configurable 10k ohm Pull-up/Pull-down resistors on DIO lines
  • Jumper selectable VCCIO (5V, 3.3V)
  • VCCIO voltage available to the user via 0.5A resettable fuse
  • Latching 50 pin connector

Data Sheets (PDF)

Product Downloads PDF Icon

PCIe-DIO-24HC Data Sheet

Product Downloads PDF Icon

PCIe-DIO-24HS Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

Software Reference Manual

Acces I/O programming utility software reference manual...

Internet Links

Part Numbers

Details

PCIe-DIO-24H

PCI Express 24 Channel Digital I/O Card

PCIE-DIO-24HS

PCI Express 24 Channel Digital I/O Card with Change of State Detection (COS)

PCIe-DIO-24HC

PCI Express 24 Channel Digital I/O Card with Three 8254 Counter/Timers
