PCIe-DIO-24D Series

Product Overview

PCI Express Digital I/O Cards with Optional Counters and COS Detection

Features Include:

  • 24 high-current DIO lines
  • Three optional 82C54 Counter / Timers
  • IRQ generation from Port C bit 3, and Counter A2 ("C" models) and/or Change-of-State (COS) Detection ("S" models)
  • DIO lines buffered
  • View More

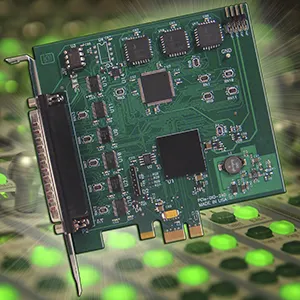

Data Acquisition & Control PCIe-DIO-24D Series Main Product Image
Data Acquisition & Control PCIe-DIO-24D Series Product Image 2

Key Features:

  • 24 high-current DIO lines
  • Three optional 82C54 Counter / Timers
  • IRQ generation from Port C bit 3, and Counter A2 ("C" models) and/or Change-of-State (COS) Detection ("S" models)
  • DIO lines buffered
  • Four and eight bit ports independently selectable for inputs or outputs
  • Software selectable 10k ohm Pull-up/Pulldown resistors on DIO lines
  • Jumper selectable VCCIO (5V, 3.3V, 2.5V,1.8V)
  • VCCIO voltage available to the user via 0.5A resettable fuse

Data Sheets (PDF)

Product Downloads PDF Icon

PCIe-DIO-24DCS Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

Software Reference Manual

Acces I/O programming utility software reference manual...

Internet Links

Media Releases

Part Numbers

Details

PCIe-DIO-24D

PCI Express 24 channel digital I/O card

PCIe-DIO-24DC

PCI Express 24 channel digital I/O card with counter/timers

PCIe-DIO-24DCS

PCI Express 24 channel digital I/O card with 82C54 counter/timers and change of state detection

PCIe-DIO-24DS

PCI Express 24 channel digital I/O card with change of state detection
