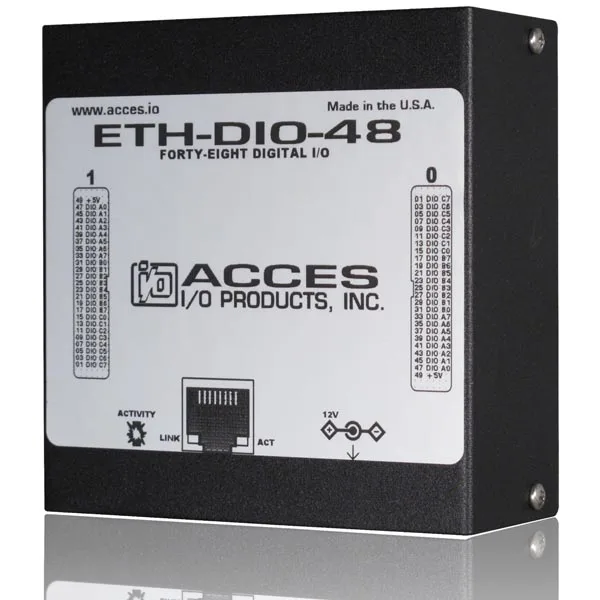

ETH-DIO-48
Product Overview
Ethernet 48-Channel Digital I/O Board (TTL Compatible)
Features Include:
- Ethernet 10/100 RJ45 connector for interfacing to CPU or network
- 48 channel high-current TTL digital I/O lines
- Compatible with industry standard I/O racks such as Grayhill, Opto 22, Western Reserve Controls, etc
- Eight-bit ports, software selectable for inputs or outputs
- View More
Key Features:
- Ethernet 10/100 RJ45 connector for interfacing to CPU or network
- 48 channel high-current TTL digital I/O lines
- Compatible with industry standard I/O racks such as Grayhill, Opto 22, Western Reserve Controls, etc
- Eight-bit ports, software selectable for inputs or outputs
- All 24 digital I/O lines buffered with 32 mA source / 64mA sink current capabilities
- Jumper selectable I/O pulled up to 5V (via 10KO) for contact monitoring, pulled down to ground or floating
- Resettable 0.5A fused +5VDC output per I/O connector
- Standard 50-pin IDC-type shrouded connectors with key
- Small, (4"x4"x1.7") rugged, steel industrial enclosure
