MPCIE-ADIO16 Series

Product Overview

PCI Express Mini Card with up to 8 SE/ 4 DE 16-bit Analogue Inputs and 4 Analog Outputs & 16 DI/O

Features Include:

  • 16-Bit 1MSPS Complete Data Acquisition System
  • 8 S/E or 4 D/E inputs with Voltage Ranges from ±0.64V to ±24.576V
  • 4 x 16-bit Analogue outputs, 5 per-channel programmable ranges
  • 16 Digital lines with alternate functions including ADC and DAC Trigger
  • View More

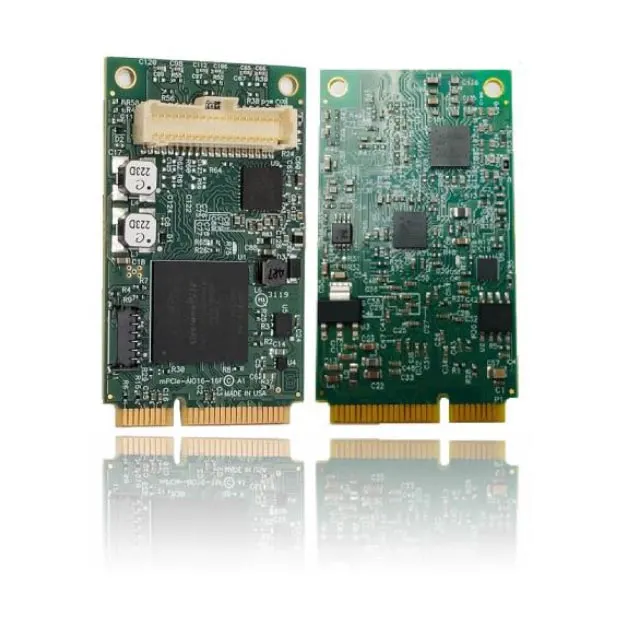

Data Acquisition & Control MPCIE-ADIO16 Series Main Product Image
Data Acquisition & Control MPCIE-ADIO16 Series Product Image 2

The mPCIe-ADIO16-8F is an ideal solution for adding high-speed analog I/O capabilities to any computer with an mPCIe slot.

The mPCIe-ADIO16-8F is a 16-bit resolution A/D & D/A board with 16 flexible digital I/O, with 8 single ended or 4 differential analog inputs. Each channel can be independently software configured to accept any input ranges.

Sixteen digital I/O configured in 9 “I/O Groups” as input or output per group. Bits 0-7 form one group, and bits 8-15 can be configured for input/output mode individually. The digital inputs implement various “alternate functions” including external trigger of ADC or DAC.

Four analog outputs with uni- and bipolar 5 and 10 volt ranges and a ±2.5V range round out the feature set.

The “FDS” model includes a new DMA-driven hardware-timed buffered DAC output feature, “DAC Waveform Streaming”. This feature allows one or more of the DACs to output voltage levels at a software-configurable rate as high as 1 million samples/second. Although the maximum rate is divided by the number of DACs being used, all DACs’ outputs update simultaneously on the hardware clock’s tick — all four DACs can output simultaneous data at 250 kilosamples/second, or one at 1 MHz! All the data is transfered by DMA to minimize CPU utilization, with IRQs so applications can send additional buffers of data as needed.

This tiny analog I/O board provides the user with everything needed to start acquiring and controlling signals in a variety of applications. The mPCIe-ADIO16-8F data acquisition board can be used in many current real-world applications such as embedded equipment monitoring, precision PC-based and portable environmental measurements, and mobile data acquisition. The board is designed to be used in rugged industrial environments and is double sided, mPCIe F1 sized.

Applications: Optical Networking, Instrumentation, Multichannel Data Acquisition and system monitoring, Automatic Test Equipment, Process Control and Industrial Automation, Power line monitoring.

Key Features:

  • 16-Bit 1MSPS Complete Data Acquisition System
  • 8 S/E or 4 D/E inputs with Voltage Ranges from ±0.64V to ±24.576V
  • 4 x 16-bit Analogue outputs, 5 per-channel programmable ranges
  • 16 Digital lines with alternate functions including ADC and DAC Trigger
  • PCI Express Mini Card (mPCIe) Type F1, Multi-Function DAQ with latching I/O connectors

Data Sheet (PDF)

Product Downloads PDF Icon

MPCIE-ADIO16 Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

Software Reference Manual

Acces I/O programming utility software reference manual...

Part Numbers

Details

MPCIE-ADIO16-8FDS

Mini PCIe 8SE/4DE channel analogue input module, 16-bit resolution, 1MHz, 4 analogue output with waveform output, 16 DIO

MPCIE-ADIO16-8F

Mini PCIe 8SE/4DE channel analogue input module, 16-bit resolution, 1MHz, 4 analogue output, 16 DIO

MPCIE-ADIO16-8A

Mini PCIe 8SE/4DE channel analogue input module, 16-bit resolution, 500KHz, 4 analogue output, 16 DIO

MPCIE-ADIO16-8E

Mini PCIe 8SE/4DE channel analogue input module, 16-bit resolution, 250KHz, 4 analogue output, 16 DIO

MPCIE-ADI16-8F

Mini PCIe 8SE/4DE channel analogue input module, 16-bit resolution, 1MHz, 16 DIO

MPCIE-ADI16-8A

Mini PCIe 8SE/4DE channel analogue input module, 16-bit resolution, 500KHz, 16 DIO

MPCIE-ADI16-8E

Mini PCIe 8SE/4DE channel analogue input module, 16-bit resolution, 250KHz, 4 analogue output, 16 DIO

MPCIE-ADIO12-8A

Mini PCIe 8SE/4DE channel analogue input module, 12-bit resolution, 500KHz, 4 analogue output, 16 DIO

MPCIE-ADIO12-8

Mini PCIe 8SE/4DE channel analogue input module, 12-bit resolution, 250KHz, 4 analogue output, 16 DIO

MPCIE-ADIO12-8E

Mini PCIe 8SE/4DE channel analogue input module, 12-bit resolution, 100KHz, 4 analogue output, 16 DIO

MPCIE-ADI12-8A

Mini PCIe 8SE/4DE channel analogue input module, 12-bit resolution, 500KHz, 16 DIO

MPCIE-ADI12-8

Mini PCIe 8SE/4DE channel analogue input module, 12-bit resolution, 250KHz, 16 DIO

MPCIE-ADI12-8E

Mini PCIe 8SE/4DE channel analogue input module, 12-bit resolution, 100KHz, 16 DIO
