ENET-AIO16 Series

Product Overview

High-Speed Ethernet DAQ, 16-bit 16SE / 8DE Analogue Inputs, 4 Analogue Outputs, 1MHz sampling, 16 DIO

Features Include:

  • High-speed Ethernet 10/100/1000 multifunction DAQ module
  • 16 single-ended or 8 differential analogue inputs
  • 16-bit or 12-bit A/D converter with up to 1MHz sampling
  • Eight programmable input ranges per channel
  • View More

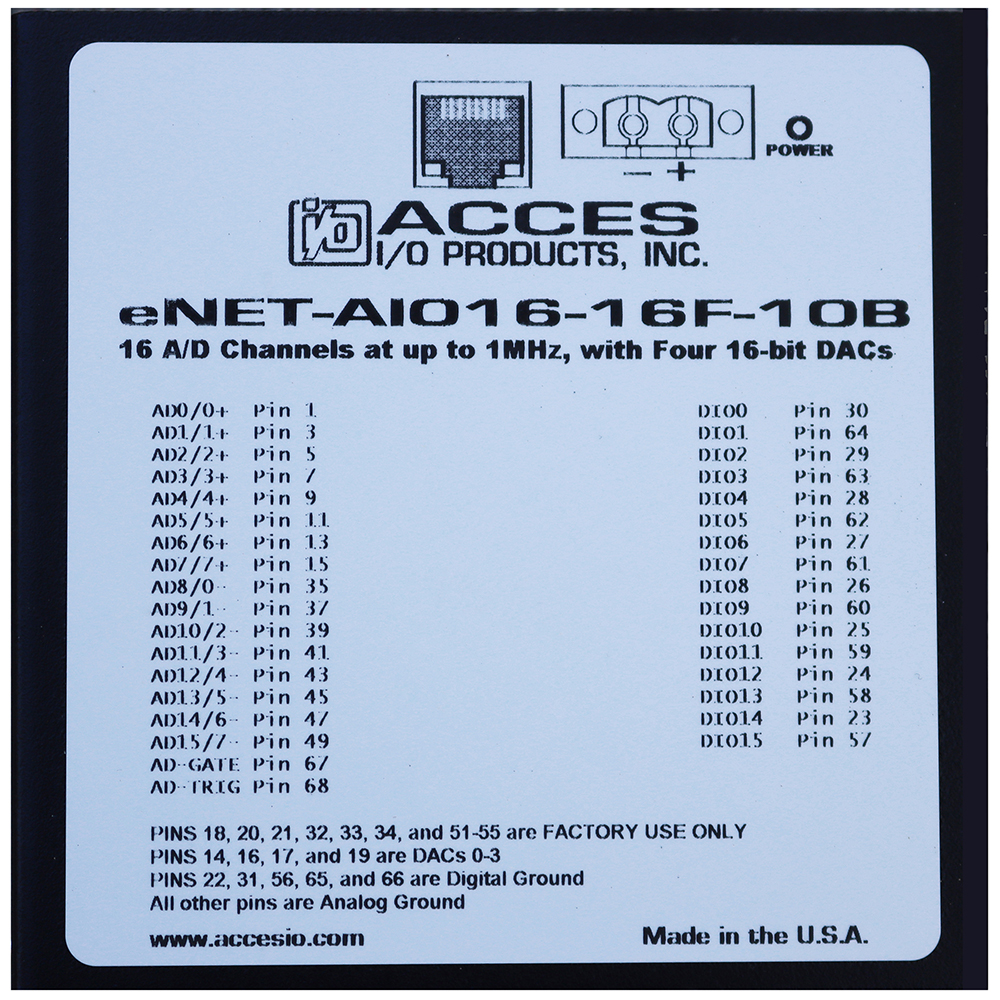

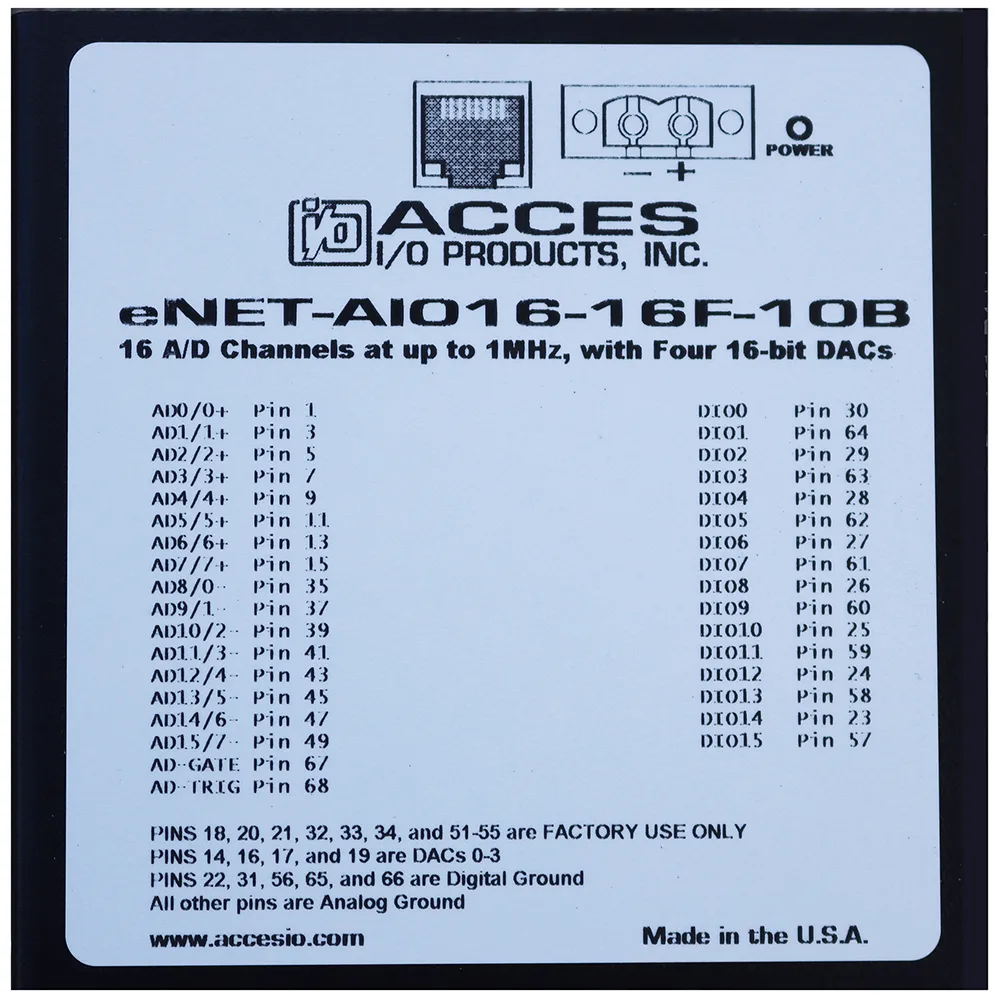

Data Acquisition & Control ENET-AIO16 Series Main Product Image

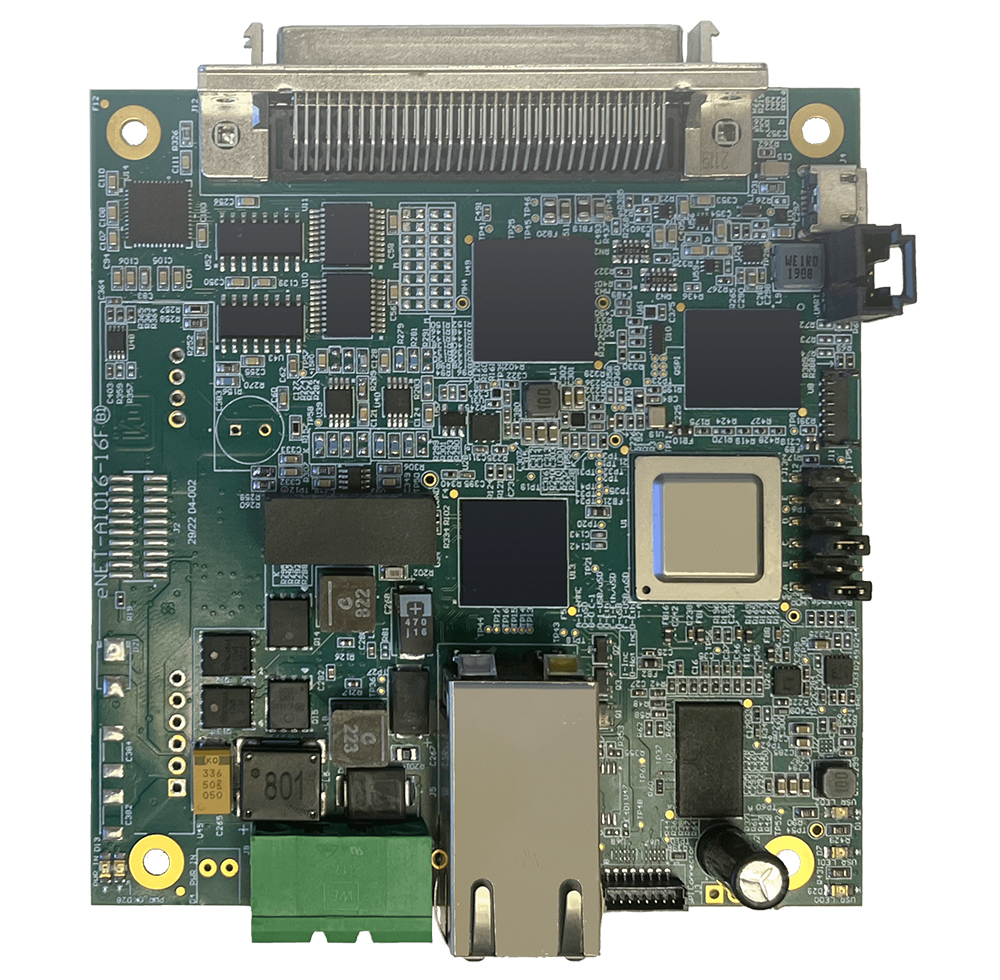

Data Acquisition & Control ENET-AIO16 Series Product Image 2

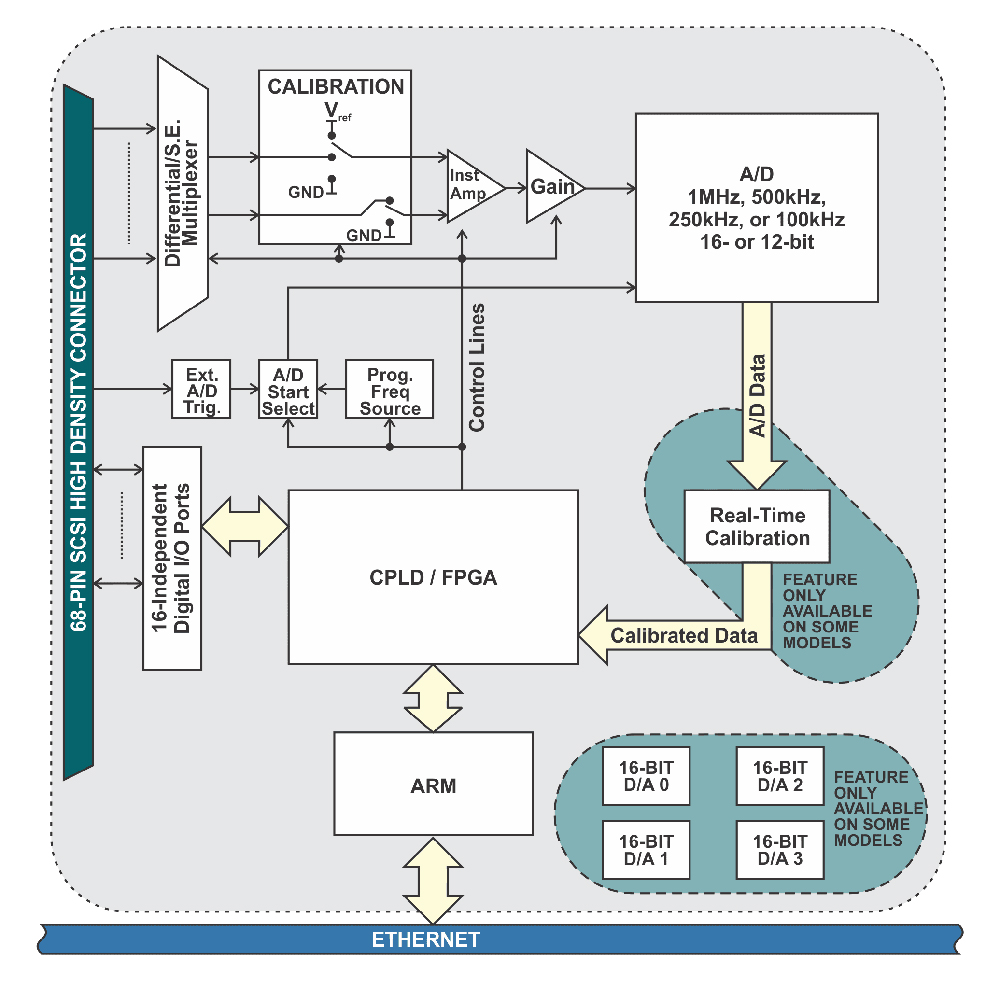

Data Acquisition & Control ENET-AIO16 Series Product Image 3

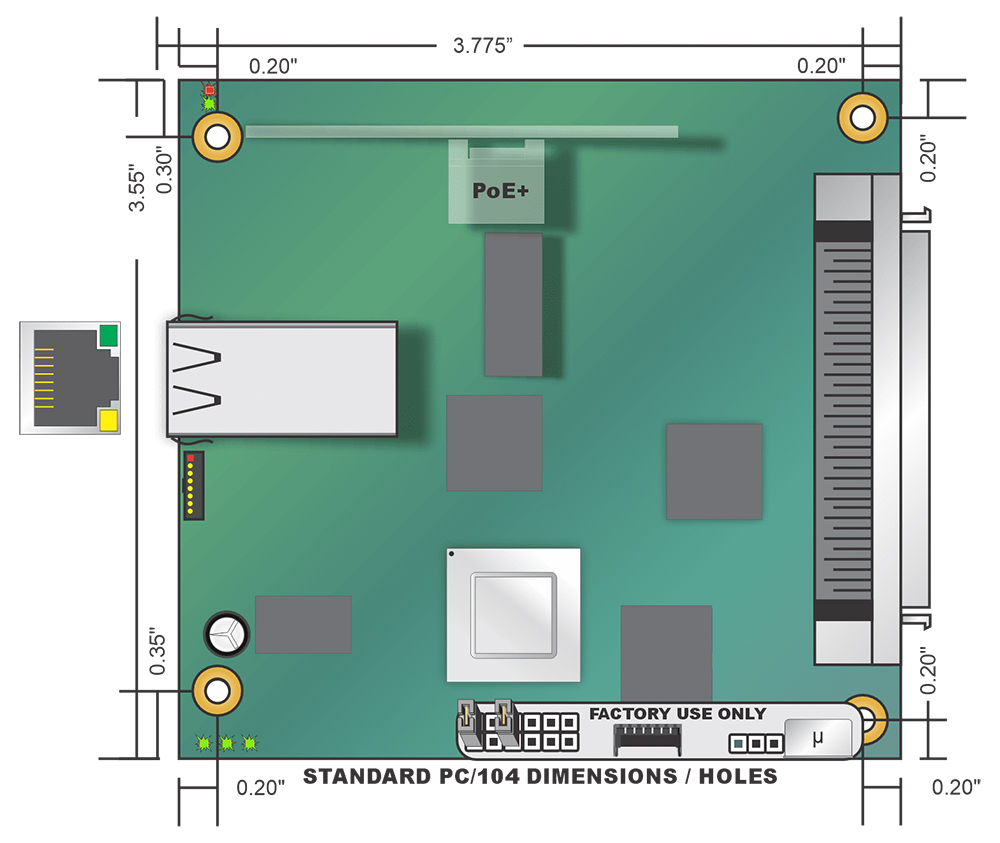

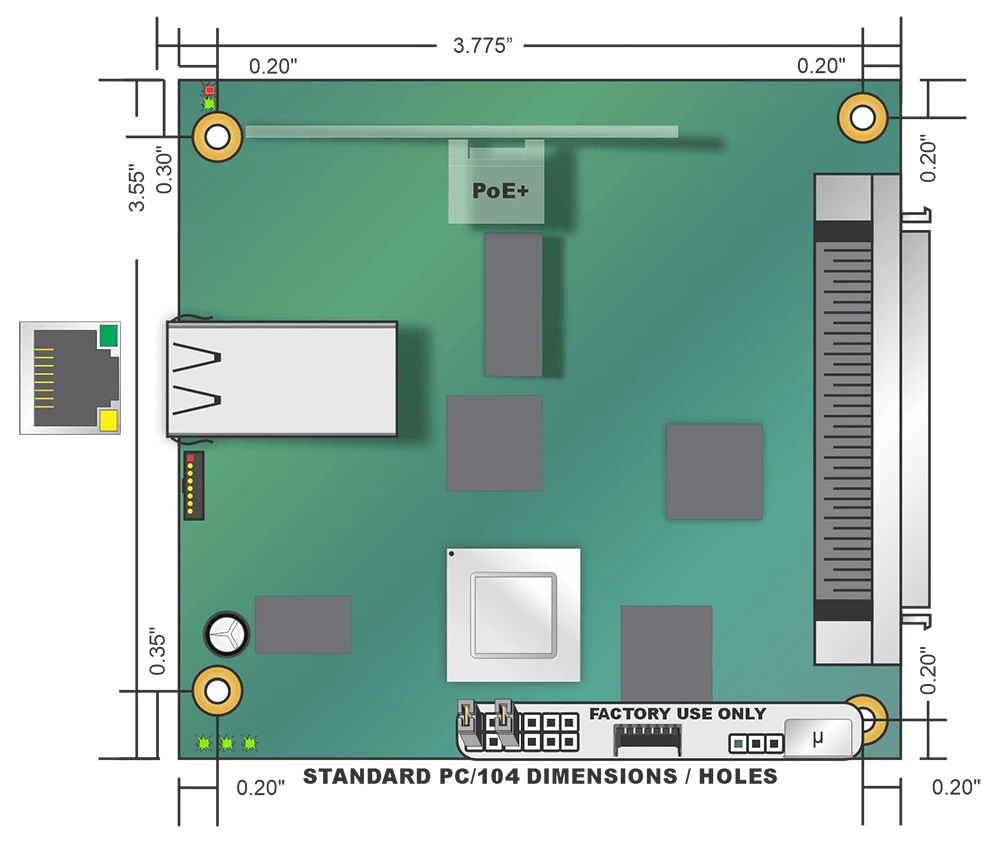

Data Acquisition & Control ENET-AIO16 Series Product Image 4
Data Acquisition & Control ENET-AIO16 Series Product Image 5

The ENET-AIO16 Series is a high-performance Ethernet multifunction data acquisition (DAQ) module designed for precision measurement and control in demanding industrial environments. Compact yet powerful, this rugged device provides high-speed analogue and digital I/O over standard 10/100/1000 Base-T Ethernet, making it ideal for remote monitoring, process control, and test applications.

Equipped with a 16-bit or 12-bit A/D converter, the ENET-AIO16 Series supports sustained sampling speeds of up to 1MHz across 16 single-ended or 8 differential analogue inputs. Each channel is independently programmable with eight input ranges (four unipolar and four bipolar), allowing maximum flexibility for diverse signal types. An advanced autocalibration and filtering system ensures accurate, reliable data without the need for manual adjustments.

For output requirements, the module provides four 16-bit analogue outputs with factory-programmed ranges, along with 16 high-current digital I/O lines for triggering, control, and status monitoring. This versatility makes the ENET-AIO16 suitable for a wide range of applications, from embedded equipment monitoring and laboratory testing to portable and field-based data acquisition.

Built on the IEC 61508-certified TI Sitara AM6422 SoC, the ENET-AIO16 offers on-board intelligence with dual-core ARM Cortex-A53 processors, real-time R5F cores, and full Linux support. Users can deploy custom applications directly on the module, with secure root access and enterprise-grade security features including secure boot, hardware root-of-trust, and crypto acceleration. This enables advanced edge processing, local analysis, and integration with Industry 4.0 and IIoT systems.

The module ships in a rugged steel enclosure with anti-skid base and is available in OEM board-only versions for embedded integration, including PC/104-compatible mounting. Factory options include extended operating temperature (-40°C to +80°C), Power over Ethernet (PoE) for simplified installation, and DIN rail mounting for easy deployment in control panels.

With cross-platform software support for Windows, Linux, and embedded operating systems, plus sample code, drivers, and a Windows DLL API, the ENET-AIO16 Series is simple to integrate into existing systems. Supported accessories include ribbon cables, terminal boards, multiplexers, and customisation options such as conformal coating and software development.

Designed for industrial automation, OEM integration, and portable DAQ applications, the ENET-AIO16 Series delivers reliable, flexible, and intelligent data acquisition in a compact, easy-to-install package.

To learn more, download the datasheet or request a quote today.

Key Features:

  • High-speed Ethernet 10/100/1000 multifunction DAQ module
  • 16 single-ended or 8 differential analogue inputs
  • 16-bit or 12-bit A/D converter with up to 1MHz sampling
  • Eight programmable input ranges per channel
  • Four 16-bit analogue outputs with factory-set ranges
  • 16 high-current digital I/O lines for control and monitoring
  • On-board intelligence with TI Sitara AM6422 SoC and Linux OS
  • Secure root access with enterprise-grade security features
  • Compact, rugged steel enclosure or OEM PC/104 form factor
  • Autocalibration and onboard filtering for precise measurements
  • Wide software support for Windows, Linux, and embedded OS
  • Factory options: extended temperature, PoE, DIN rail mounting

Data Sheets (PDF)

Product Downloads PDF Icon

ENET-AIO16 Series Data Sheet

Product Downloads PDF Icon

ENET-AIO16 Series Manual

Part Numbers

Details

ENET-AI12-16

Ethernet 16SE/8DE channel analogue input module, 12-bit resolution, 250kHz, 16 DI/O

ENET-AI12-16A

Ethernet 16SE/8DE channel analogue input module, 12-bit resolution, 500kHz, 16 DI/O

ENET-AI12-16E

Ethernet 16SE/8DE channel analogue input module, 12-bit resolution, 100kHz, 16 DI/O

ENET-AI16-16A

Ethernet 16SE/8DE channel analogue input module, 16-bit resolution, 500kHz, 16 DI/O

ENET-AI16-16E

Ethernet 16SE/8DE channel analogue input module, 16-bit resolution, 250kHz, 16 DI/O

ENET-AI16-16F

Ethernet 16SE/8DE channel analogue input module, 16-bit resolution, 1MHz, 16 DI/O

ENET-AIO12-16

Ethernet 16SE/8DE channel analogue input module, 12-bit resolution, 250kHz, 16 DI/O, 4 analogue out

ENET-AIO12-16A

Ethernet 16SE/8DE channel analogue input module, 12-bit resolution, 500kHz, 16 DI/O, 4 analogue out

ENET-AIO12-16E

Ethernet 16SE/8DE channel analogue input module, 12-bit resolution, 100kHz, 16 DI/O, 4 analogue out

ENET-AIO16-16A

Ethernet 16SE/8DE channel analogue input module, 16-bit resolution, 500kHz, 16 DI/O, 4 analogue out

ENET-AIO16-16E

Ethernet 16SE/8DE channel analogue input module, 16-bit resolution, 500kHz, 16 DI/O, 4 analogue out

ENET-AIO16-16F

Ethernet 16SE/8DE channel analogue input module, 16-bit resolution, 1MHz, 16 DI/O, 4 analogue out
