104-AIM-32A-KIT

Product Overview

PC/104 16 differential or 32 single-ended input analog signal multiplexer and 12-bit A/D board

Features Include:

  • Includes one 12-bit A/D board
  • 32 single-ended or 16 differential inputs
  • 6 software programmable ranges: ±25mV, ±50mV, ±0.1V, ±2.5V, ±5V, ±10V
  • +5VDC only operation
  • View More

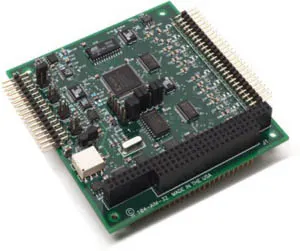

Data Acquisition & Control 104-AIM-32A-KIT Main Product Image
Data Acquisition & Control 104-AIM-32A-KIT Product Image 2

Key Features:

  • Includes one 12-bit A/D board
  • 32 single-ended or 16 differential inputs
  • 6 software programmable ranges: ±25mV, ±50mV, ±0.1V, ±2.5V, ±5V, ±10V
  • +5VDC only operation
  • Precision 15VDC sensor excitation
  • 0 to 70°C operating temperature (-40 to +85°C Optional)
  • Input Signal Conditioning Options: 4-20mA inputs, RTD, Thermocouple, Voltage divider on each input, RC filters on each input, Bridge completion configuration

Data Sheets (PDF)

Product Downloads PDF Icon

104-AIM-32 Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

104-AIM-32 Technical Manual

Internet Links

Part Numbers

Details

104-AIM-32A-KIT

104-AIM-32 plus a dedicated 104-AI12-8 12-bit A/D board
