M.2-AIO16 Series

Product Overview

M.2 with 16 SE/ 8 DE 16-Bit Analogue Inputs, 4 Analog Outputs & 2 DI/O

Features Include:

  • 2× 16-bit, bipolar, differential, A/D converters sampling at up to 1MHz, simultaneously (2MSPS aggregate) software selectable as 16+0, 8+4 or 0+8 S/E or D/E
  • 8 Input Ranges, 4 Unipolar And 4 Bipolar, Channel-By-Channel Programmable
  • 4 x 16-bit Analogue outputs, 5 per-channel programmable ranges
  • “FDS” model allows hardware-timed DMA+FIFO (8 kSamples) waveform streaming on up to four DACs
  • View More

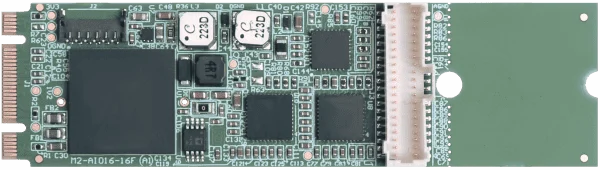

Data Acquisition & Control M.2-AIO16 Series Main Product Image
Data Acquisition & Control M.2-AIO16 Series Product Image 2

The M.2-AIO16-16F is an ideal solution for adding high-speed analog I/O capabilities to any computer with an M.2 slot.

The M.2-AIO16-16F is a 16-bit resolution A/D & D/A board with two simultaneous 1MHz A/D converters, with 8 single ended or 4 differential analog inputs multiplexed to each ADC. Each channel can be independently software configured to accept any of 8 different input ranges. Four analog outputs with uni- and bipolar 5 and 10 volt ranges and a ±2.5V range round out the feature set.

The “FDS” model includes a new DMA-driven hardware-timed buffered DAC output feature, “DAC Waveform Streaming”. This feature allows one or more of the DACs to output voltage levels at a software-configurable rate as high as 1 million samples/second. Although the maximum rate is divided by the number of DACs being used, all DACs’ outputs update simultaneously on the hardware clock’s tick — all four DACs can output simultaneous data at 250 kilosamples/second, or one at 1 MHz! All the data is transfered by DMA to minimize CPU utilization, with IRQs so applications can send additional buffers of data as needed.

This tiny analog I/O board provides the user with everything needed to start acquiring and controlling signals in a variety of applications. The mPCIe-AIO16-16F data acquisition board can be used in many current real-world applications such as embedded equipment monitoring, precision PC-based and portable environmental measurements, and mobile data acquisition. The board is designed to be used in rugged industrial environments and is double sided, mPCIe F1 sized.

Applications: Optical Networking, Instrumentation, Multichannel Data Acquisition and system monitoring, Automatic Test Equipment, Process Control and Industrial Automation, Power line monitoring.

Key Features:

  • 2× 16-bit, bipolar, differential, A/D converters sampling at up to 1MHz, simultaneously (2MSPS aggregate) software selectable as 16+0, 8+4 or 0+8 S/E or D/E
  • 8 Input Ranges, 4 Unipolar And 4 Bipolar, Channel-By-Channel Programmable
  • 4 x 16-bit Analogue outputs, 5 per-channel programmable ranges
  • “FDS” model allows hardware-timed DMA+FIFO (8 kSamples) waveform streaming on up to four DACs
  • 2 Digital I/O
  • M.2 2260/2280 “B/M” size Card with latching I/O connectors

Data Sheets (PDF)

Product Downloads PDF Icon

M.2-AIO16-16F Data Sheet

Technical Manuals (PDF)

Product Downloads PDF Icon

Software Reference Manual

Acces I/O programming utility software reference manual...

Part Numbers

Details

M2-AIO16-16FDS

M.2 16SE/8DE channel analogue input module, 16-bit resolution, 1MHz x 2, 4 analogue output with waveform output

M2-AIO16-16F

M.2 16SE/8DE channel analogue input module, 16-bit resolution, 1MHz x 2, 4 analogue output

M2-AIO16-16A

M.2 16SE/8DE channel analogue input module, 16-bit resolution, 500kHz x 2, 4 analogue output

M2-AIO16-16E

M.2 16SE/8DE channel analogue input module, 16-bit resolution, 250kHz x2, 4 analogue output

M2-AI16-16F

M.2 16SE/8DE channel analogue input module, 16-bit resolution, 1MHz x 2

M2-AI16-16A

M.2 16SE/8DE channel analogue input module, 16-bit resolution, 500kHz x 2

M2-AI16-16E

M.2 16SE/8DE channel analogue input module, 16-bit resolution, 250kHz x 2

M2-AIO12-16A

M.2 16SE/8DE channel analogue input module, 12-bit resolution, 500kHz x 2, 4 analogue output

M2-AIO12-16

M.2 16SE/8DE channel analogue input module, 12-bit resolution, 250kHz x 2, 4 analogue output

M2-AIO12-16E

M.2 16SE/8DE channel analogue input module, 12-bit resolution, 100kHz x2, 4 analogue output

M2-AI12-16A

M.2 16SE/8DE channel analogue input module, 12-bit resolution, 500kHz x 2, 4 analogue output

M2-AI12-16

M.2 16SE/8DE channel analogue input module, 12-bit resolution, 250kHz x 2

M2-AI12-16E

M.2 16SE/8DE channel analogue input module, 12-bit resolution, 100kHz x 2
